XPWR068 - 400V@150mA CT, 6.3V@2.5A, & 6.3V@2.5A
Primary Voltage:
Primary Voltage
Quantity:
| Quantity Discounts | ||||
|---|---|---|---|---|
| 10 pcs | 25 pcs | 100 pcs | 500+ pcs | |
| 5% off | 10% off | 15% off | 20% off | |
| Orders over 25 pcs may take longer. Please contact us for scheduling and dates. | ||||

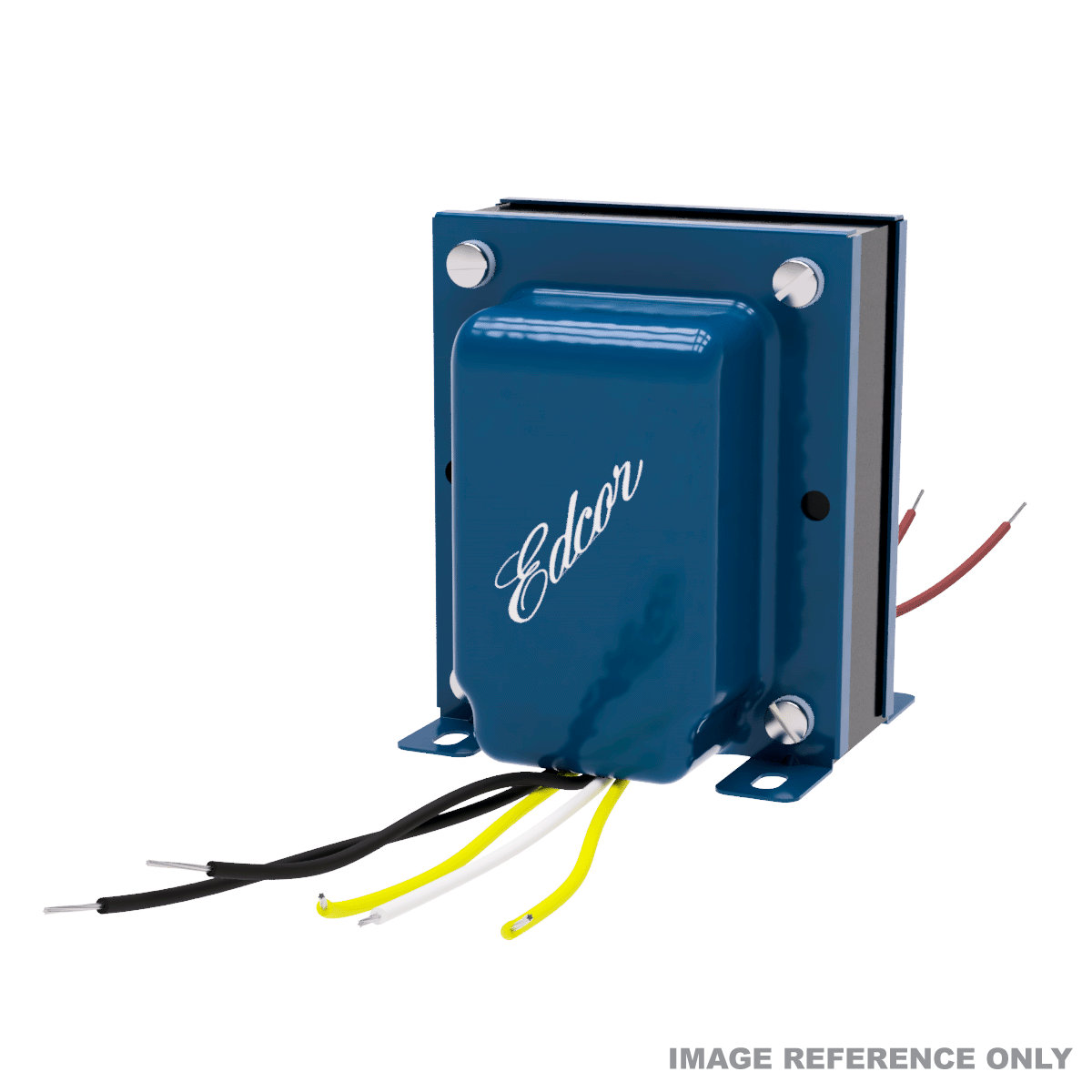

The XPWR068 is a tube plate and filament power transformer. It has a primary of 120V 60Hz. to a secondary of 400V(200-0-200) at 150mA center tapped, 6.3V at 2.5A and 6.3V at 2.5A.
| Basic Specifications | |
|---|---|
Type |
|
Series |
|
Model Number Model Number/Unit Name/SKU/NS-PID
|
XPWR068-120
|

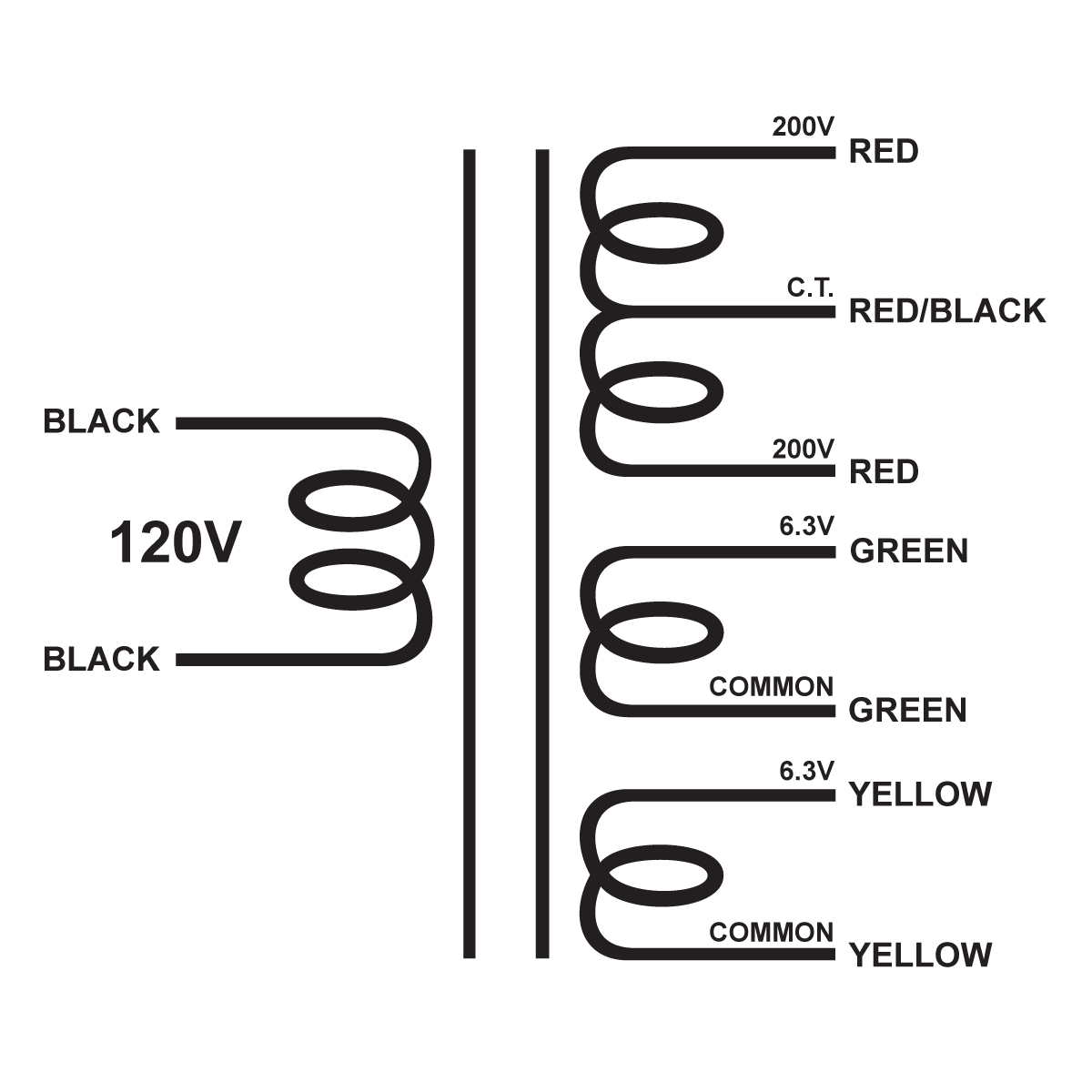

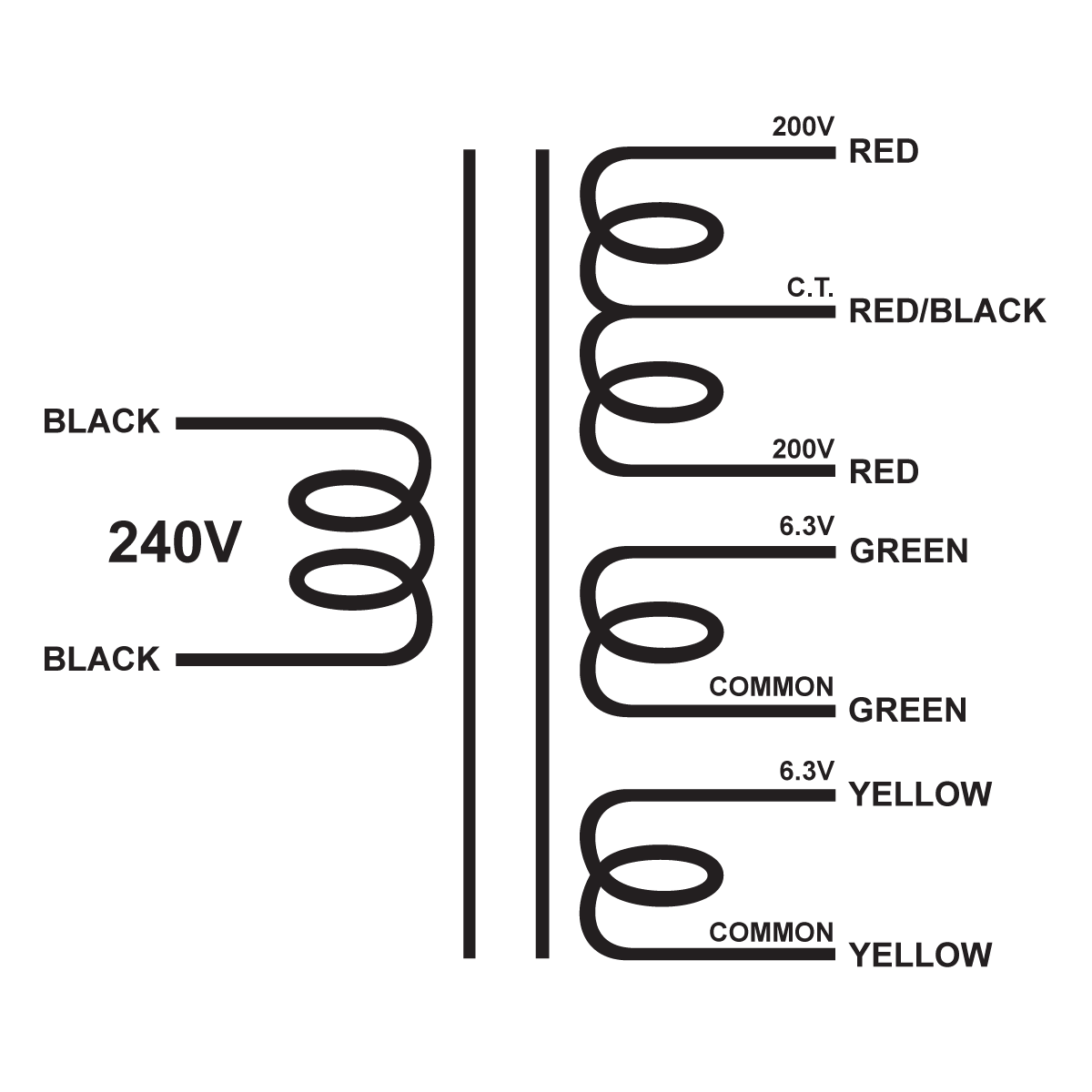

Schematic (PDF) Free Adobe Acrobat Reader can be downloaded at Adobe.com.
|
|
Spec Sheet (PDF) Free Adobe Acrobat Reader can be downloaded at Adobe.com.
|
|
Primary (input) |
|
Secondary (output) |
|
Termination Such as lead wires, terminals, PCB pins, etc.
|
|
Mounting Orientation Direction of mounting.
|
|
Mounting Hardware |
|
Mounting Hardware Coating |
|
Mounting Hardware Color |
|
| Primary (input) | |
Voltage Symbol: Ep
|
120V
|
Operational Frequency Symbol: ƒop
|
|
Current Symbol: Ip
Maximum primary current
|
0.839A
|
DC Resistance Symbol: Rp
|
3.542Ω
|
Inductance Symbol: Lp
|
0.835H
|
| Secondary (output) | |
Tube Voltage Symbol: Es
|
400V
|
Other Voltage(s) Symbol: Es
|
6.3V and 6.3V
|
Unloaded Voltage(s) Symbol: NL(Es)
Calculated voltage when no loaded is applied to the secondary.
|
439.885V, 6.916V, and 6.916V
|
Current(s) Symbol: Is
Maximum secondary current(s)
|
0.15A, 2.5A, and 2.5A
|
DC Resistance Symbol: Rs
DC Resistance
|
75.323Ω, 0.083Ω, and 0.086Ω
|
Inductance Calculated value. Actual value may vary. Symbol (Ls)
|
0.835H
|
| Other Specifications | |
Total Volt Amperes Symbol: VA
|
|
Winding Configuration Type of winding pattern.
|
|
Leakage Inductance Symbol: LI
Imperfect magnetic link of one winding to another.
|
|
Temperature Rise Symbol: Tr
The temperature rise above the ambient temperature at rated power.
|
75.73°F (24.3°C)
|
Efficiency Symbol: η
The efficiency of the transfer of energy from the primary to the secondary.
|
|
| Physical | |
Weight Symbol: Wt
|
4.5 lb
|
Dimensions (Width) X (Height) X (Depth)
|
|
Dimensional Drawing (#) |
|
Dimension Drawing (PDF) Free Adobe Acrobat Reader can be downloaded at Adobe.com.
|
|
3D Model (STEP) STEP (Standard for the Exchange of Product Data), an ISO standard exchange format.
|
|
| Material | |
Bobbin Material |
|
Bobbin Flammability Rating |
|
Magnet Wire |
|
Coil Finish Wrapper |
|
Termination |
|
Core Material |
|
Core Material Size |
|
Core Stack Size |
|
Core Stack Type |
|
Secondary Insulation |
|
Dielectric Strength |
|
Temperature Range |
|
HIPOT Primary-Secondary |
|
| Compliance | |
RoHS Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment.
|
|
REACH Registration, Evaluation, Authorization and Restriction of Chemicals in EU.
|
|
CMRT RMI Conflict Metals Reporting Template
|
|
GPSR The General Product Safety Regulation (GPSR) is a legislative framework established by the European Union.
|
|
| Other | |
Country of Origin Where the product was manufactured or assembled.
|
|
Harmonized System (HS) Code Standardized numerical system classifying traded products.
|
|
