XPWR078 - 500V@400mA CT, 60V@50mA & 6.3V@7A

SKU: XPWR078-120

Sale price$120.78

Shipping calculated at checkout


Mathematically designed to produce the specified voltage(s) when loaded.

Primary (Input)
Designed for 120V at 60Hz., 220V at 50/60Hz., or 240V at 50/60Hz.

Secondary (Output)
This transformer has multiple voltage windings, 500V (250-0-250) at 400mA center tapped, 60V at 50mA and 6.3V at 7A.

Magnet Wire
All units are wound with the finest virgin copper magnet wire. All windings use heavy insulated wire to provide excellent manufacturing yield, lower customer cost and superior life.

The Core
EDCOR uses the finest M6 line grain oriented steel cores. Each unit is hand stacked to assure at least 92% stack.

The Bobbin
Injection molded Nylon 6/6 with the addition of 30%-35% glass fibers. The addition of glass fibers allows a higher heat deflection temperature and it brings the material to a class HB UL temperature classification.

The terminations are UL1015 18 ga. color coded lead wire around 15 inches (38cm) long.

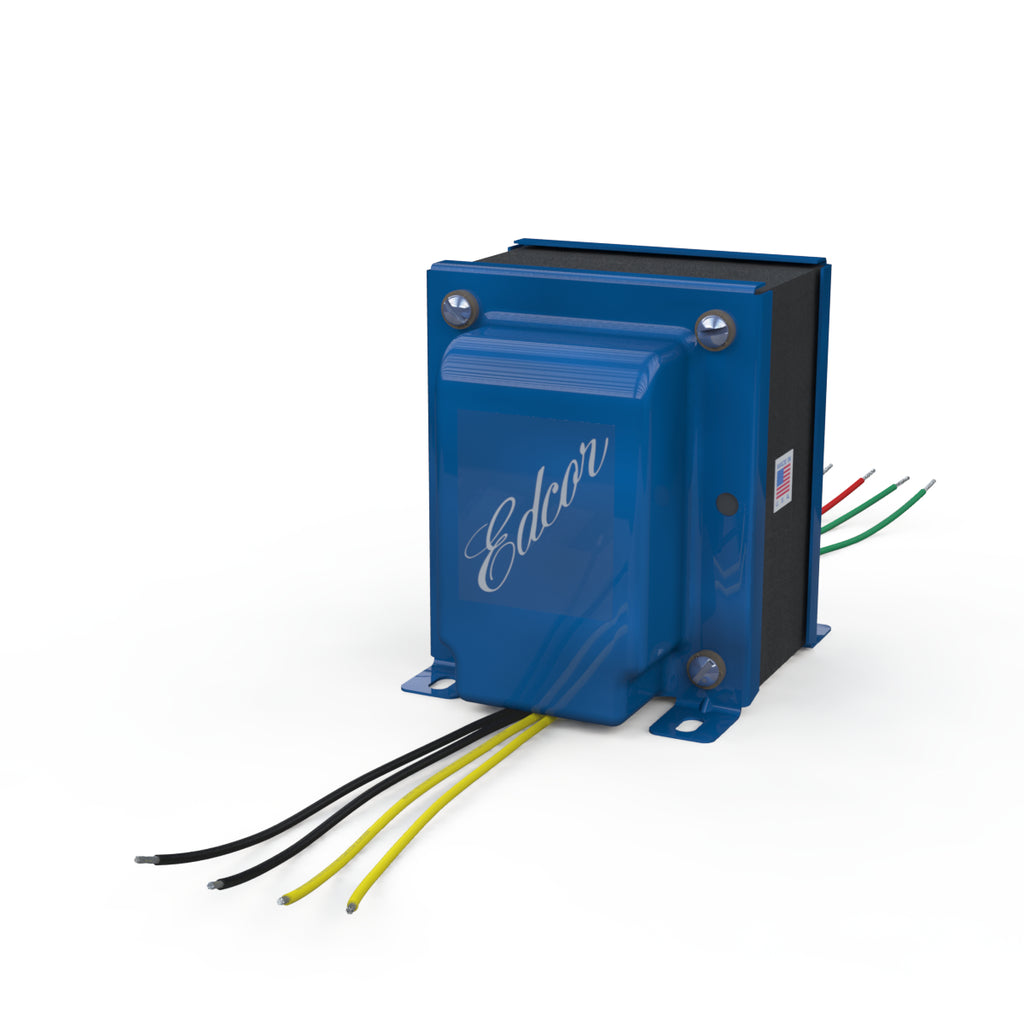

This unit comes with steel end bells for mounting with the use of four screws. See dimensional drawing.


Primary (input) Voltage Depends on model.

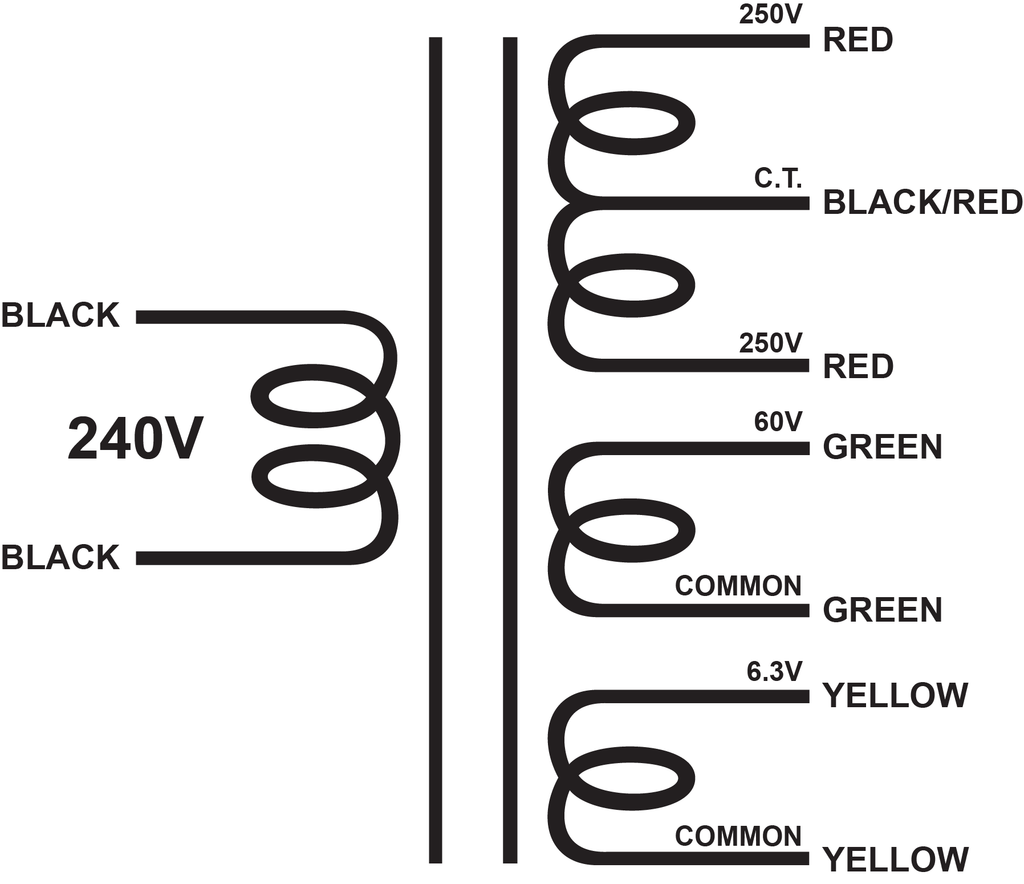

Secondary (output) Voltage 500V(250-0-250)@400mA, 60V@50mA & 6.3V@7A
Winding Configuration Primary-Secondary
Bobbin Material Nylon 6/6 GF-30
Flammability Rating Class HB
Coil Finish Wrapping Polyester Film Electrical Insulating Tape
Core Size
EI150 (1.5" x 2")
Core Material M-6 29 ga. grain oriented lamination steel
Secondary Insulation Clear air dry polyester varnish
Termination 15" (38cm) UL1015, 18 ga. lead wire
Steel end bell covers
Mounting Orientation Vertical
Weight 9.75 lbs.
Compliance RoHS & REACH
Dimensional Drawing 15000-EI150-200-0X
