Description
Design
Mathematically designed to produce the specified voltage(s) when loaded.
Primary (Input)
Designed for 120V or 240V at 50/60Hz.
Secondary (Output)

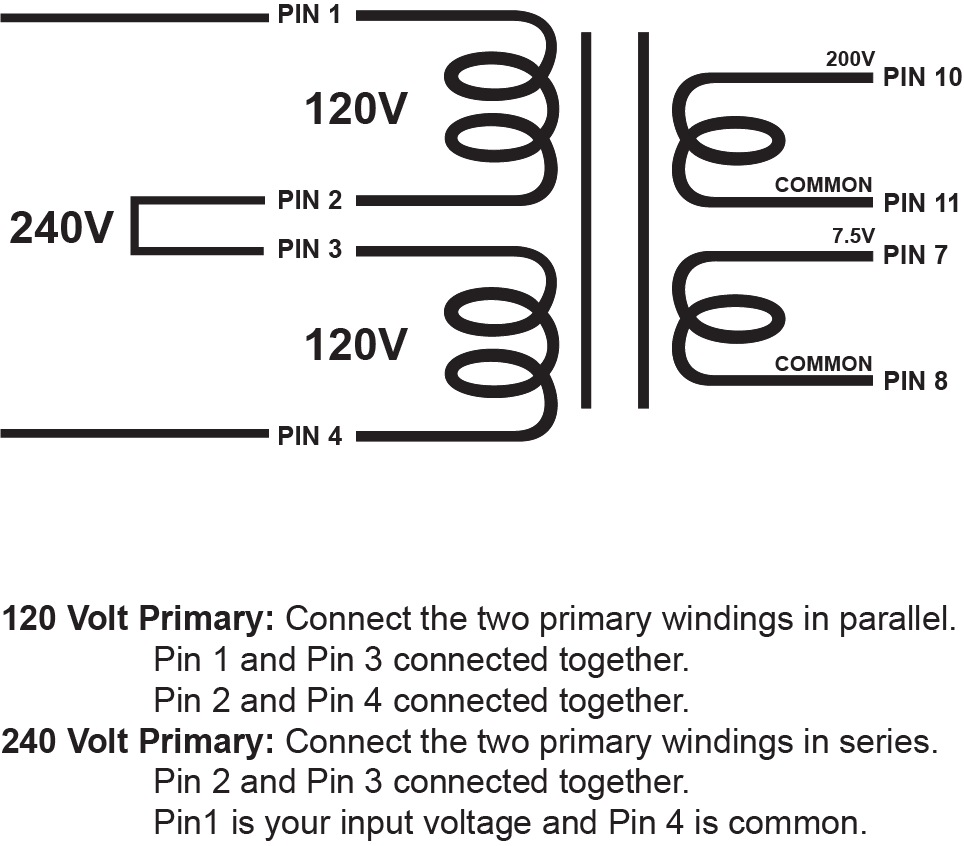

This transformer has multiple voltage windings, 200V at 40mA and 7.5V at 1.5A.
Magnet Wire
All units are wound with the finest virgin copper magnet wire. All windings use heavy insulated wire to provide excellent manufacturing yield, lower customer cost and superior life.

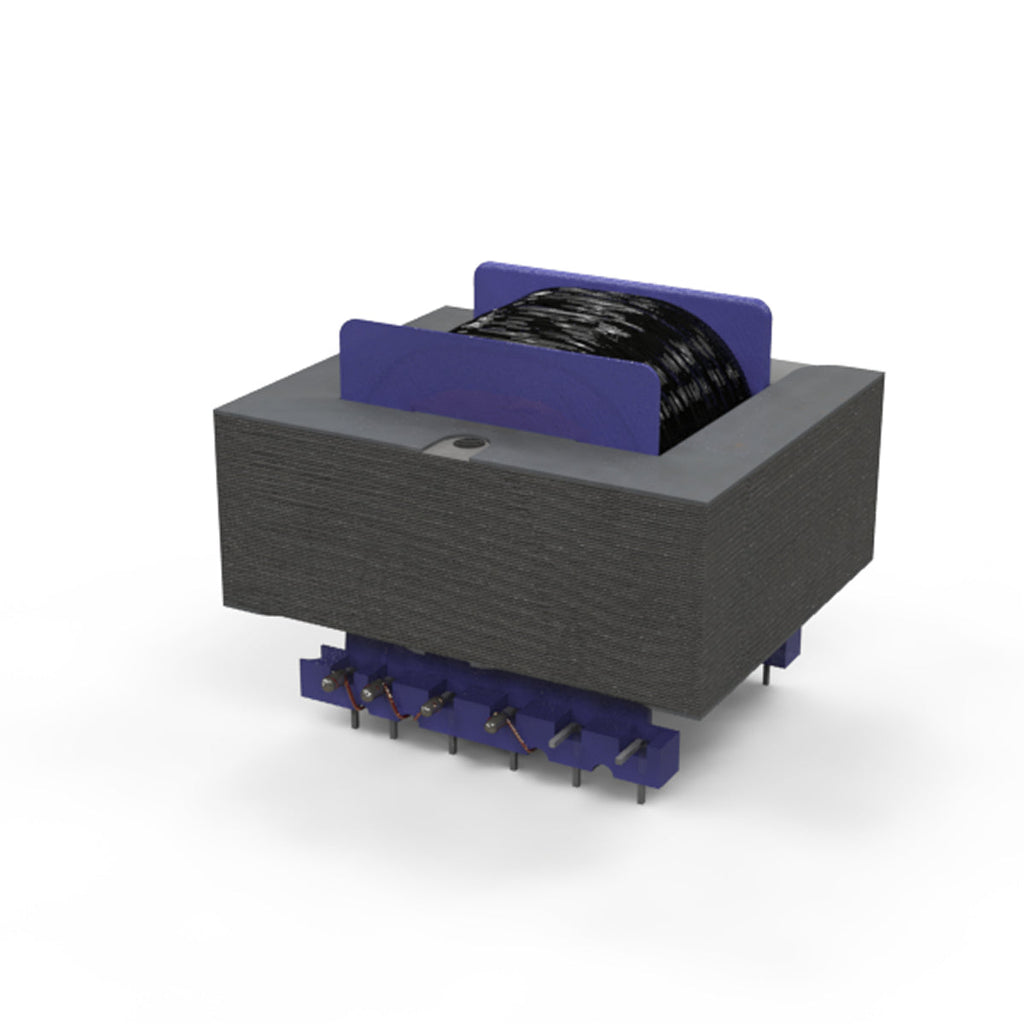

The Core
EDCOR uses the finest M6 line grain oriented steel cores. Each unit is hand stacked to assure at least 92% stack.
The Bobbin
Injection molded Nylon 6/6 with the addition of 30%-35% glass fibers. The addition of glass fibers allows a higher heat deflection temperature and it brings the material to a class HB UL temperature classification.
Termination/Mounting
This unit is designed for mounting on a printed circuit board. For footprint and suggested hole and pad size, see dimensional drawing.
Specifications
| Primary (input) Voltage | Depends on model |
| Secondary (output) Voltage | 200V@40mA & 7.5V@1.5A |
| Winding Configuration | Primary-Secondary |
| Bobbin Material | Nylon 6/6 GF-30 |
| Flammability Rating | Class HB |
| Coil Finish Wrapping | Polyester Film Electrical Insulating Tape |
| Core Size |
EI75 (0.75" x 0.87") |
| Core Material | M-6 29 ga. grain oriented lamination steel |
| Secondary Insulation | Clear air dry polyester varnish |
| Termination | 12 pin PCB |
| Mounting |
Printed circuit board (PCB) |
| Mounting Orientation | Laydown |
| Weight | 0.75 lbs. |
| Compliance | RoHS & REACH |
| Dimensional Drawing | 15000-EI075-087-P12 |
