XPWR225 - 600V@300mA CT, 6.3V@5A & 5V@5A
Quantity:
| Quantity Discounts | ||||
|---|---|---|---|---|
| 10 pcs | 25 pcs | 100 pcs | 500+ pcs | |
| 5% off | 10% off | 15% off | 20% off | |
| Orders over 25 pcs may take longer. Please contact us for scheduling and dates. | ||||

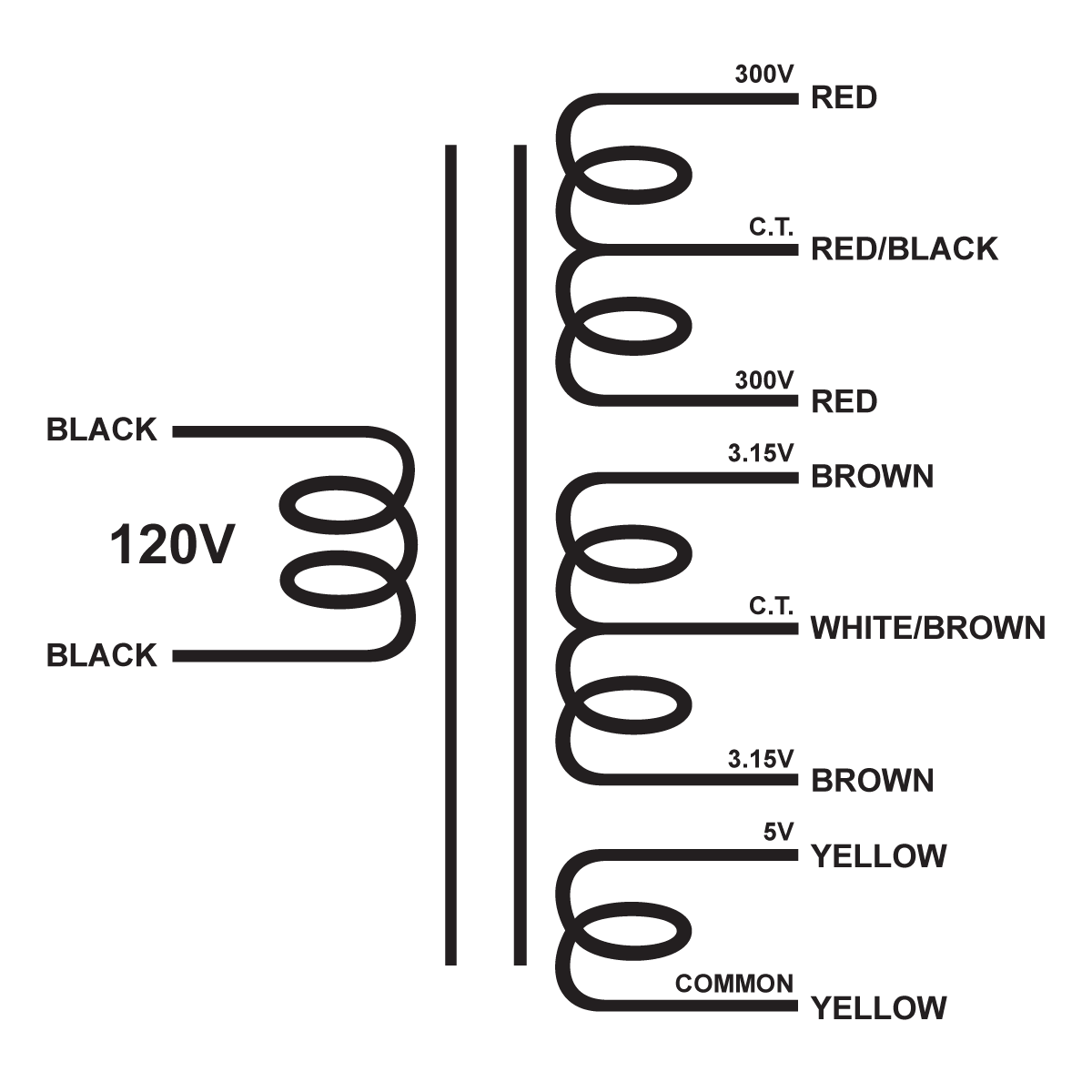

The XPWR225 is a tube plate and filament power transformer. It has a primary of 120V 60Hz. to a secondary of 600V(300-0-300) at 300mA center tapped, 6.3V at 5A, and 5V at 5A.
