Orders over 25 pcs may take longer. Please contact us for scheduling and dates.

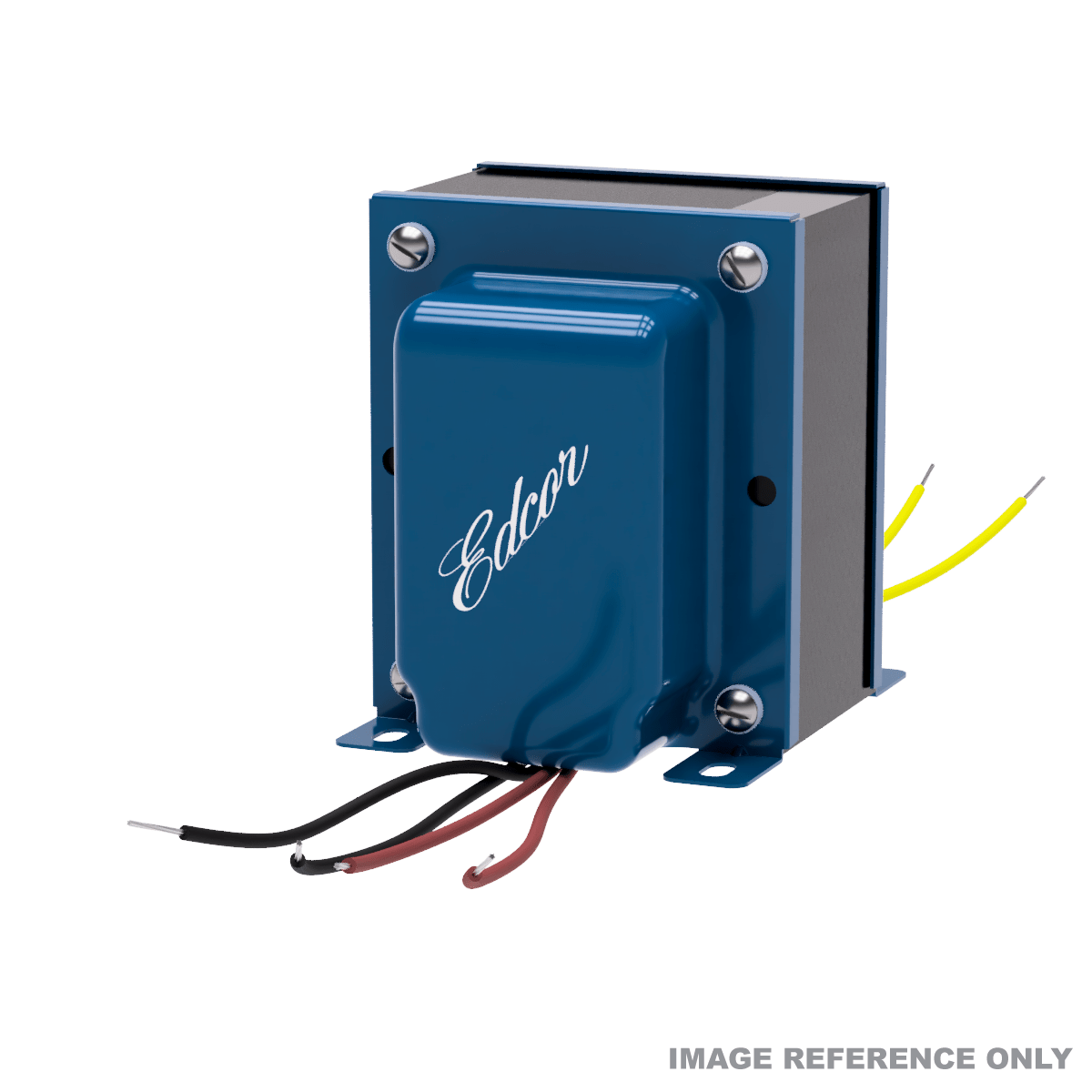

The XPWR314 is a high-quality vacuum tube plate power transformer is designed for Hi-Fi audio and guitar amplifiers.
EDCOR manufactures all transformers in their United States factory in Carlsbad, New Mexico.
Design The primary windings are tailored to the source voltage and frequency, while the secondary windings are calculated with a loss factor to ensure the voltage is achieved under full load.
Materials EDCOR sources materials and parts from other U.S. manufacturers whenever possible, ensuring all components are RoHS and REACH compliant.
The bobbins are made from injection-molded nylon 6/6 with 30%-35% glass fibers for higher heat resistance. The coils use high-quality virgin copper magnet wire for low DC resistance. The steel cores are made from M6 line grain-oriented steel laminations, finished hand-stacked for optimal core performance.
Mounting For secure mounting, this transformer includes steel powder-coated end bells that can be mounting with screws to the chassis (see detailed in the dimensional drawing).

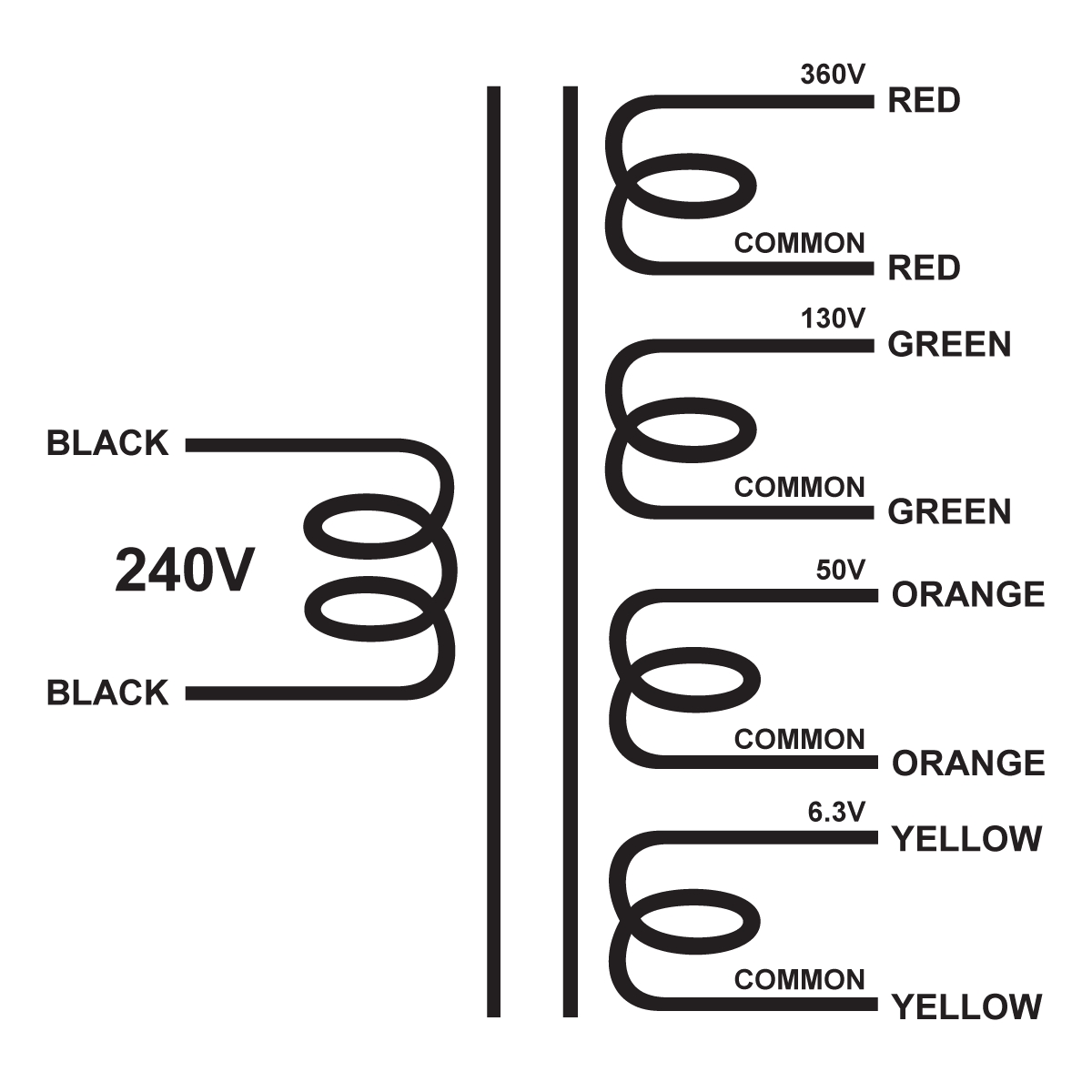

Specifications for product XPWR314 - 360V@300mA, 130V@80mA, 50V@50mA, & 6.3V@6.5A
Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment.
Yes
REACH
Registration, Evaluation, Authorization and Restriction of Chemicals in EU.
Yes
CMRT
RMI Conflict Metals Reporting Template
Yes
GPSR
The General Product Safety Regulation (GPSR) is a legislative framework established by the European Union.
Yes
Other
Country of Origin
Where the product was manufactured or assembled.
United States
Harmonized System (HS) Code
Standardized numerical system classifying traded products.
8504.31
Please note that some specification values are calculation and may vary from the actual values
⚠ WARNING ⚠
These electronic components are designed exclusively for indoor or enclosed environments. It is crucial to keep them away from water and moisture to prevent damage. Transformers can generate hazardous voltages and currents, so technical electrical expertise is essential for safe use.
