EDCOR Electronics Corporation
XSM2.4K/50-50 - 2-1/2W balanced 2.4K to dual unbalanced 50 Ohms.
Quantity:
| Quantity Discounts | ||||
|---|---|---|---|---|
| 10 pcs | 25 pcs | 100 pcs | 500+ pcs | |
| 5% off | 10% off | 15% off | 20% off | |
| Orders over 25 pcs may take longer. Please contact us for scheduling and dates. | ||||

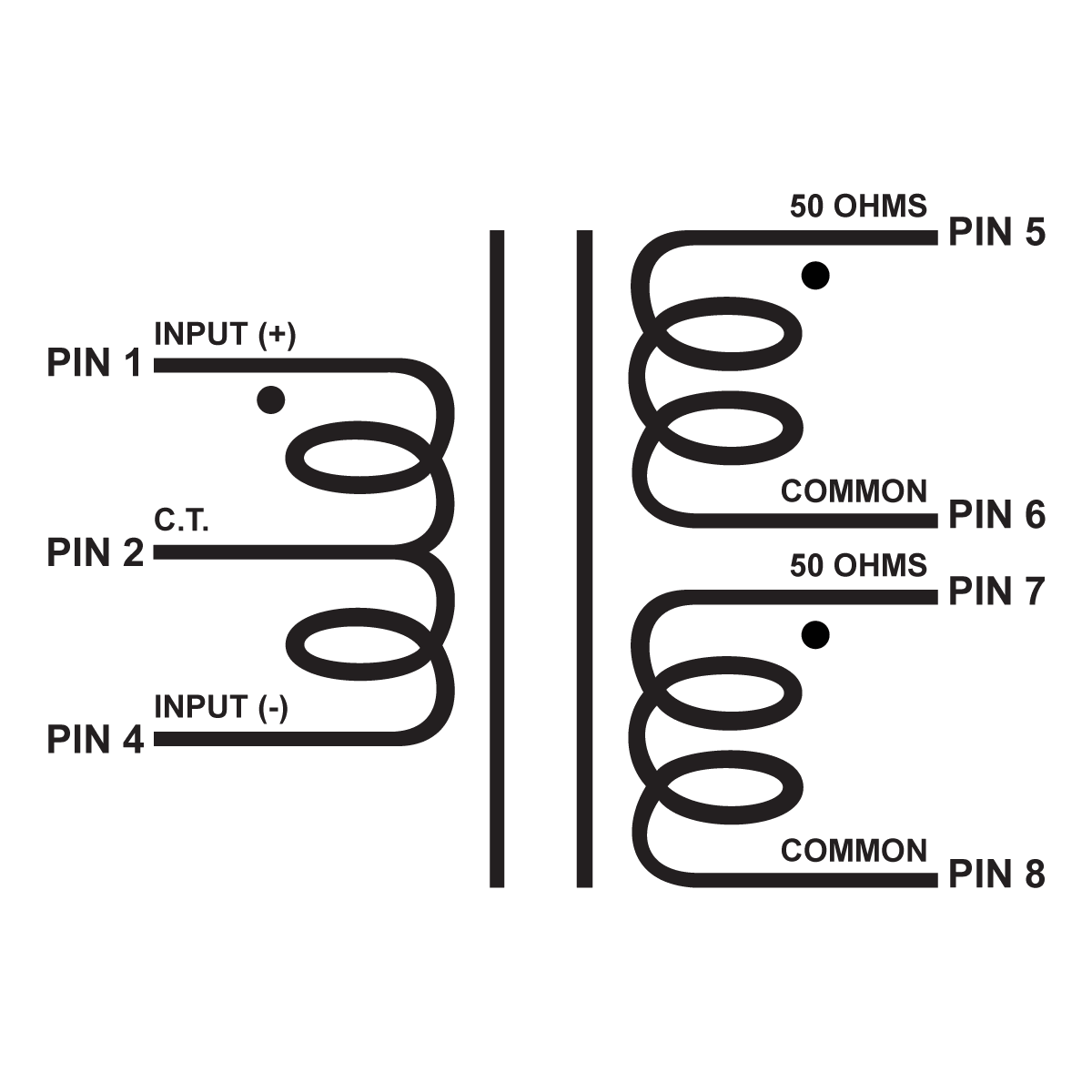

Isolated matching transformer,
2.4K Ohms balanced or unbalanced to dual unbalanced 50 ohms.
| Basic Specifications | |
|---|---|
Series |
|
SKU Model Number/Unit Name
|
XSM2.4K/50-50
|
Primary (input) |
|
Secondary (output) |
|
Termination Such as lead wires, terminals, PCB pins, etc.
|
|
Mounting Orientation Direction of mounting.
|
|
Mounting Hardware |
|
Mounting Hardware Color |
#bac4c8
|
Mounting Hardware Color ID |
|
| Primary (input) | |
Impedance Symbol: Zp
AC resistance
|
2.4KΩ
|
Current Symbol: Ip
Maximum primary current
|
0.032A
|
DC Resistance Symbol: Rp
|
226.444Ω
|
| Secondary (output) | |
Current(s) Symbol: Is
Maximum secondary current(s)
|
0.224A and 0.224A
|
DC Resistance Symbol: Rs
DC Resistance
|
6.697Ω and 7,265Ω
|
| Other Specifications | |
Frequency Response Symbol: ƒ
Magnitude of difference between the rated Low Frequency (ƒlo) and the High Frequency (ƒhi).
|
|
Winding Configuration Type of winding pattern.
|
|
| Physical | |
Weight Symbol: Wt
|
0.75 lb
|
Dimensions (Width) X (Height) X (Depth)
|
|
Dimensional Drawing (#) |
|
Dimension Drawing (PDF) Free Adobe Acrobat Reader can be downloaded at Adobe.com.
|
|
3D Model (STEP) STEP (Standard for the Exchange of Product Data), an ISO standard exchange format.
|
|
| Material | |
Bobbin Material |
|
Bobbin Flammability Rating |
|
Magnet Wire |
|
Coil Finish Wrapper |
|
Termination |
|
Core Material |
|
Core Material Size |
|
Core Stack Size |
|
Core Stack Type |
|
Secondary Insulation |
|
Dielectric Strength |
|
Temperature Range |
|
HIPOT Primary-Secondary |
|
| Compliance | |
RoHS Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment.
|
|
REACH Registration, Evaluation, Authorization and Restriction of Chemicals in EU.
|
|
CMRT RMI Conflict Metals Reporting Template
|
|
GPSR The General Product Safety Regulation (GPSR) is a legislative framework established by the European Union.
|
|
| Other | |
Country of Origin Where the product was manufactured or assembled.
|
|
Harmonized System (HS) Code Standardized numerical system classifying traded products.
|
|
