XSM Series

Previous productXSM Series

Next productXSM Series

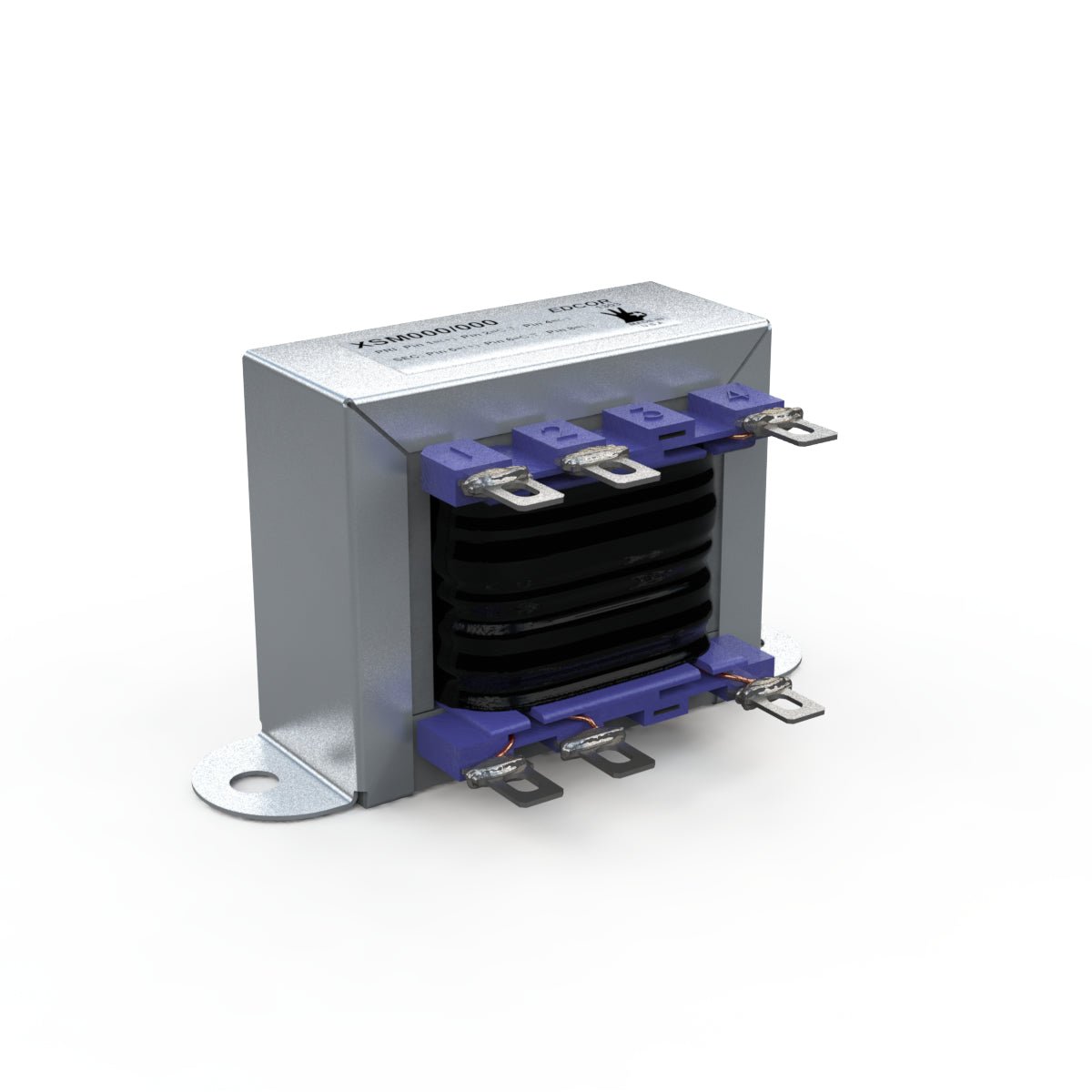

2-1/2W line level matching transformer.

Availability: Product is built to order.

Ship date: 6 to 8 weeks

2 review(s) | Add your review

Transformer Impedance * The primary and secondary transformer impedance.

$18.93

Qty:

Design
Mathematically designed to match line level signals.

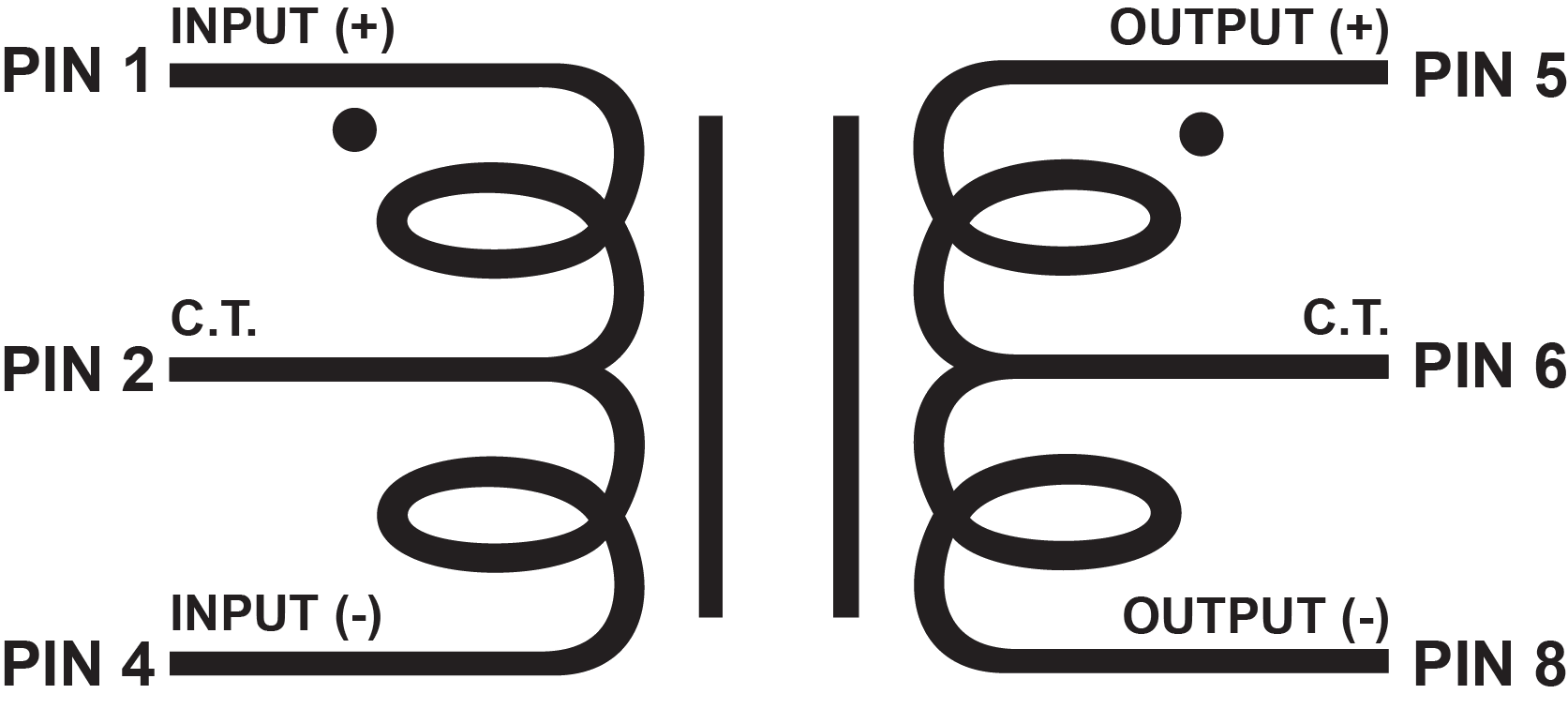

Primary (Input)
Designed for a balanced or unbalanced line level signal.

Secondary (Output)
Designed for a balanced or unbalanced line level signal.

Magnet Wire
All units are wound with the finest virgin copper magnet wire. All windings use heavy insulated wire to provide excellent manufacturing yield, lower customer cost and superior life.

The Core
EDCOR uses the finest M6 line grain oriented steel cores. Each unit is hand stacked to assure at least 92% stack.

The Bobbin
EDCOR's glass filled bobbin with black finishing tape.

Termination
The terminations are 0.187" (3/16") quick disconnects.

Mounting

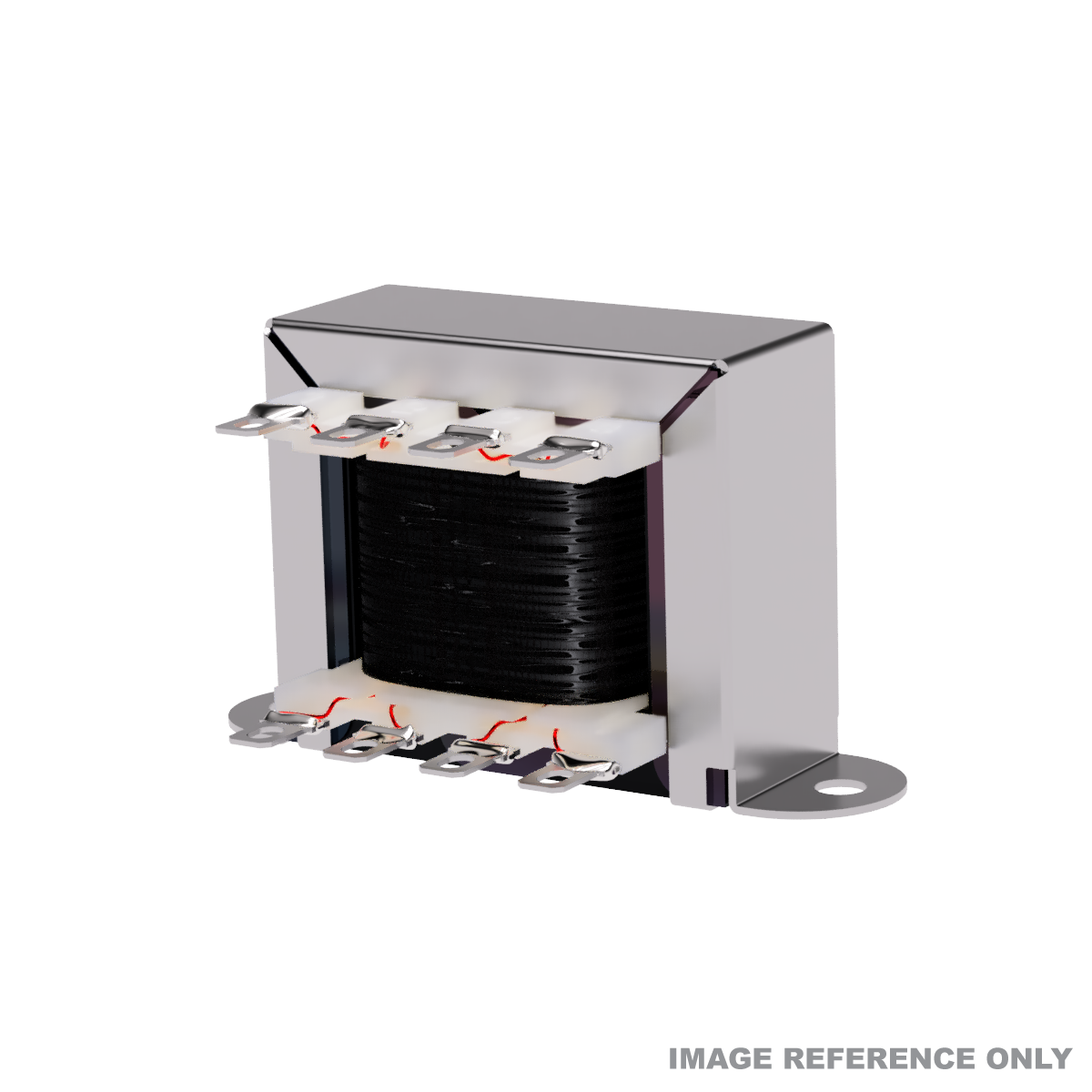

This unit comes with zinc plated channel/frame for mounting with the use of two screws.

Overview
Specifications
Reviews
Product Files

Design
Mathematically designed to match line level signals.

Primary (Input)
Designed for a balanced or unbalanced line level signal.

Secondary (Output)
Designed for a balanced or unbalanced line level signal.

Magnet Wire
All units are wound with the finest virgin copper magnet wire. All windings use heavy insulated wire to provide excellent manufacturing yield, lower customer cost and superior life.

The Core
EDCOR uses the finest M6 line grain oriented steel cores. Each unit is hand stacked to assure at least 92% stack.

The Bobbin
EDCOR's glass filled bobbin with black finishing tape.

Termination
The terminations are 0.187" (3/16") quick disconnects.

Mounting
This unit comes with zinc plated channel/frame for mounting with the use of two screws.

Products specifications

Wattage	2.5W
Turns Ratio	Depends on model.
Primary (input) Impedance	Depends on model.
Secondary (output) Impedance	Depends on model.
Frequency Response	20~20K Hz., <1dBu
THD+Noise	<0.05% @ 1K Hz.
Insertion Loss	0.5 dB
Bobbin Material	Nylon 6/6 GF-30
Flammability Rating	Class B 130°C
Core Material	M-6 29 ga. grain oriented lamination steel
Secondary Insulation (transformer)	Clear air dry polyester varnish
Termination	0.187" (3/16") quick disconnects
Mounting	Zinc plated steel channel/frame
Weight	0.75 lbs.
Compliance	RoHS & REACH

Write your own review

Only registered users can write reviews

Review title:

Review text:

Rating:

Bad
Excellent

Existing reviews

An awesome DAC

I tweaked a cheap chinese DAC using these transformers as coupling devices for the output, which is taken directly from the DAC chip.
The sound is amazing, open and liquid.
One of my best DIY, thank you!

From: Marco Vivian | Date: 4/2/2014 6:30 AM

Was this review helpful? Yes No (2/0)

EDCOR is a DIY treasure.

Superior quality, handmade in the USA! I have used this transformer for my build
of the PRR176 vari-mu compressor project. I used NOS tubes and philips polypropylene throughout the audio stage. I am thrilled with the sound. I build high end pro audio with the biggest names in vintage and collector transformers and am proud to say that Edcor is an exceptional value, not even considering the competitive pricing. I have compared to some of the most sought after audio transformers of the same paramaters and I am particularly fond of the midrange character of the audio line. The power transformers are rock solid and look cool as well, with the blue finish! Customer service is top notch…EDCOR is a DIY treasure.

From: Tony Franco | Date: 2/4/2018 11:44 AM

Was this review helpful? Yes No (0/0)

Product Files

Dimensional Drawings

15000-EI625-075-18.pdf

Frequency Response/THD+N

Products specifications

Wattage	2.5W
Turns Ratio	Depends on model.
Primary (input) Impedance	Depends on model.
Secondary (output) Impedance	Depends on model.
Frequency Response	20~20K Hz., <1dBu
THD+Noise	<0.05% @ 1K Hz.
Insertion Loss	0.5 dB
Bobbin Material	Nylon 6/6 GF-30
Flammability Rating	Class B 130°C
Core Material	M-6 29 ga. grain oriented lamination steel
Secondary Insulation (transformer)	Clear air dry polyester varnish
Termination	0.187" (3/16") quick disconnects
Mounting	Zinc plated steel channel/frame
Weight	0.75 lbs.
Compliance	RoHS & REACH
