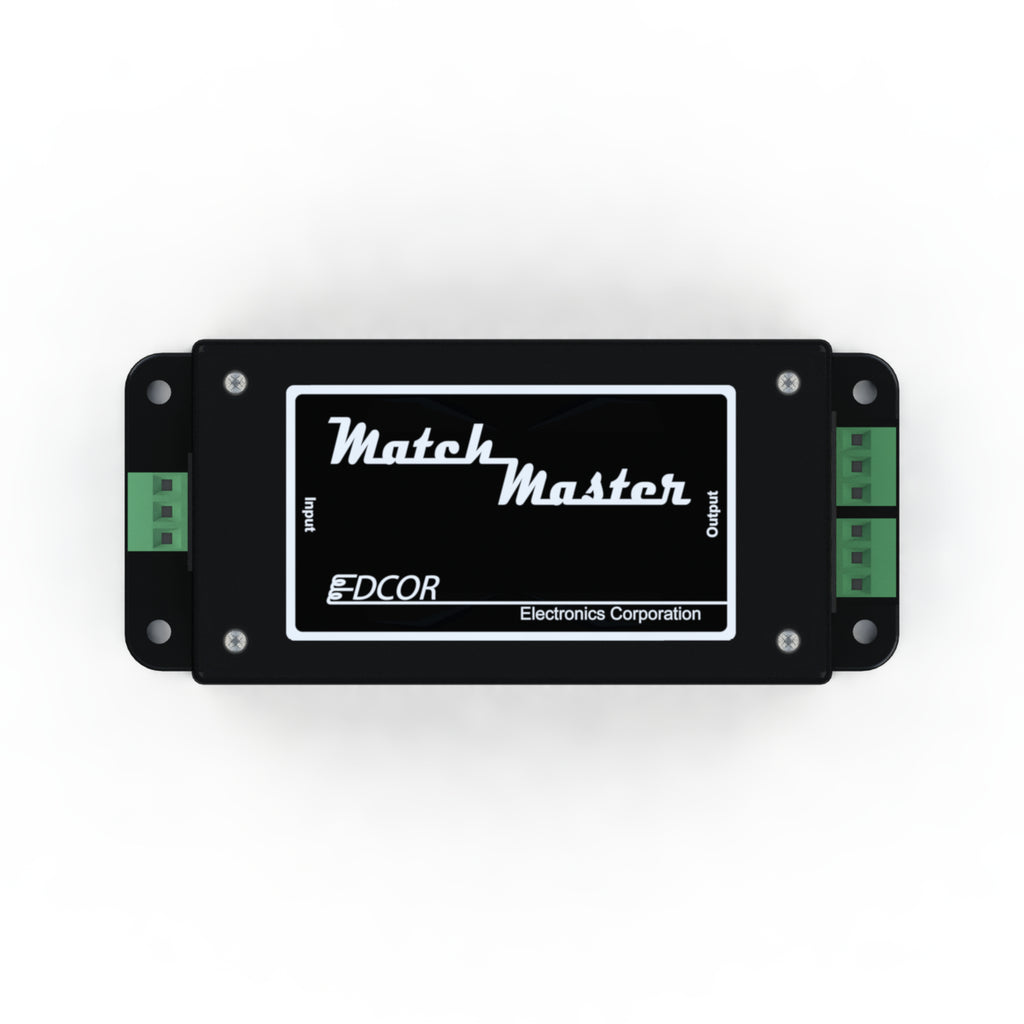

SP-LL-T - Balanced line level audio splitter.


Sale price$75.50

Shipping calculated at checkout

Built to order. Estimated to ship 4 to 6 weeks.
Quantity Discounts
10~24 pcs 5% off
25~99 pcs 10% off
100~499 pcs 15% off
500+ pcs 20% off
Orders over 25 pcs may take longer. Please contact us for scheduling and dates.


These audio splitters use high quality low noise components to deliver broadcast and recording quality sound.

Continuous Quality Sound
Each unit is a designed passive splitter that can be used to operate continuously without degradation of sound.

Balanced Line Input
This is a balanced 600 Ohms line level inputs. The connectors are 3 pin screw Eurostyle connector.

Balanced Line Output
Each unit has two balanced 600 Ohms line level output. The connector is a 3 pin screw Eurostyle connector. This output is ideal for telephone lines. signal processors, amplifiers, or any other units that have a balanced line input.

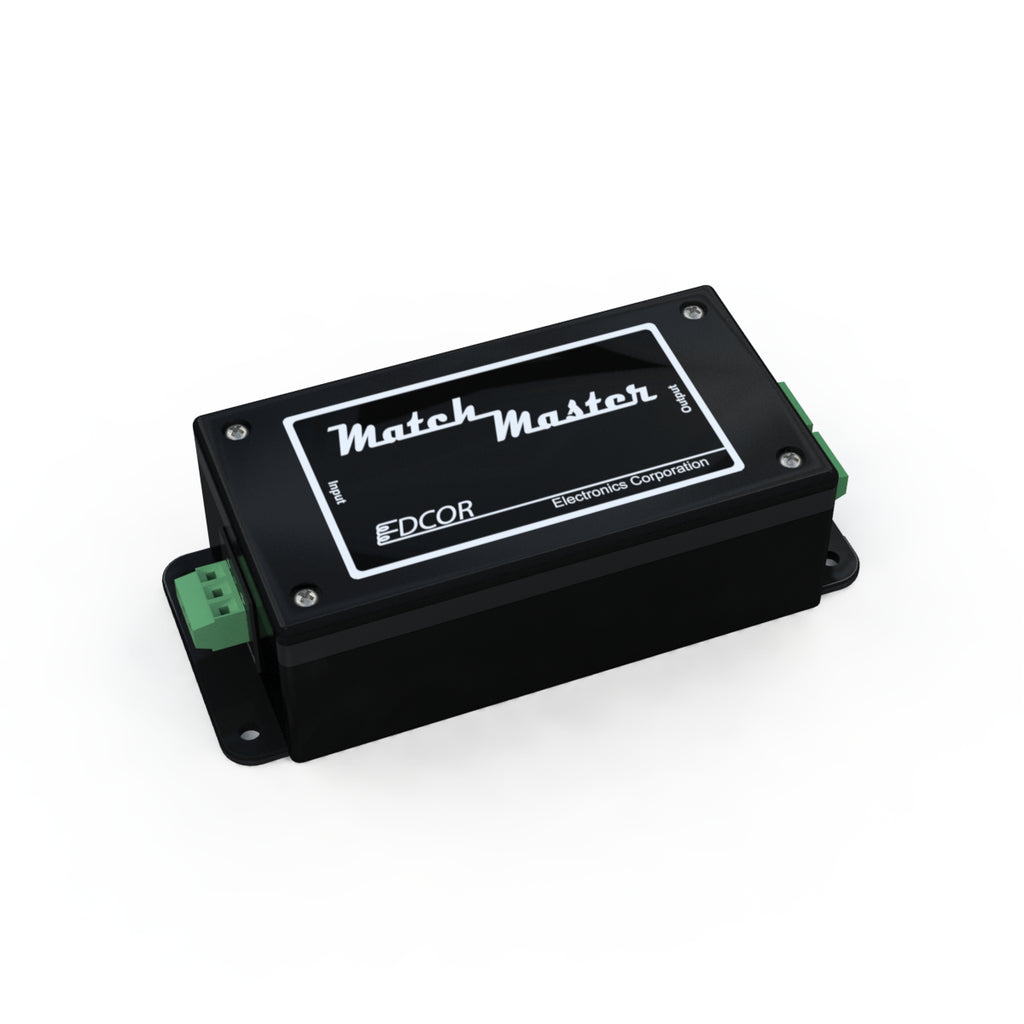

The enclosure is a rugged black ABS plastic molded box for a clean look.

Surface Mounting
The unit is designed for surface mounting with the use of four screws or with double back tape (not provided). See dimensional drawing.


Input Maximum Voltage 5Vrms
Input Line Level
Input Impedance
600 Ω
Output Dual Line Level
Output Impedance
600 Ω
Turns Ratio 1:1:1
Winding Configuration Tri-filer Winding
Frequency Response 20~20K Hz., <1dBu
THD+Noise <0.05% @ 1K Hz.
Frequency Response/THD+Noise Plot SP-LL-T
Enclosure ABS Plastic Molded Box
Termination Eurostyle connectors
Surface Mounted
Weight 0.75 lbs.
Compliance RoHS REACH
User Manual SP Series
Dimensional Drawing 12000-SPT0-03
