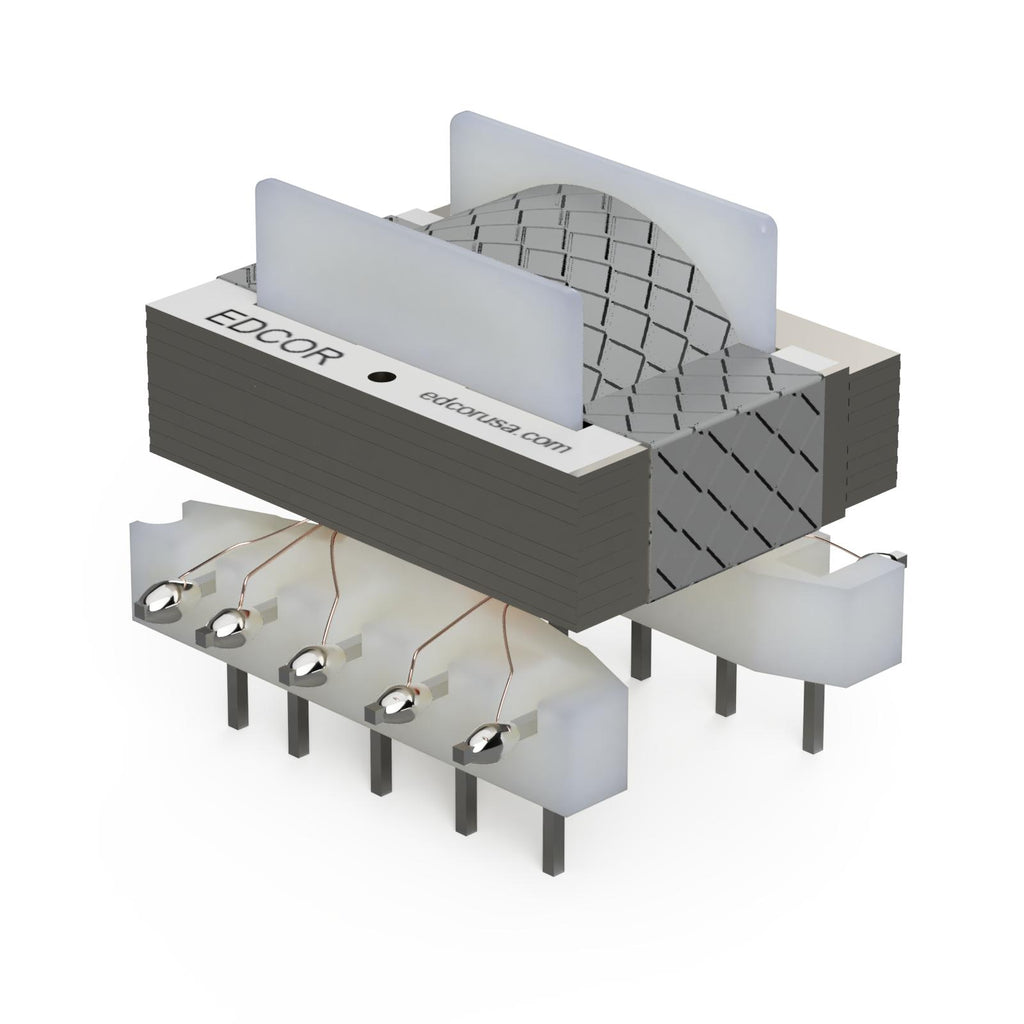

MXcs Series - 1/8W nickel core microphone level matching transformers with copper shield.
Turns Ratio
loading..
| Quantity Discounts | ||||
|---|---|---|---|---|
| 10 pcs | 25 pcs | 100 pcs | 500+ pcs | |
| 5% off | 10% off | 15% off | 20% off | |
| Orders over 25 pcs may take longer. Please contact us for scheduling and dates. | ||||
Get shipping cost estimate in cart.
Design
These audio matchers use high quality low noise components to deliver broadcast and recording quality sound.

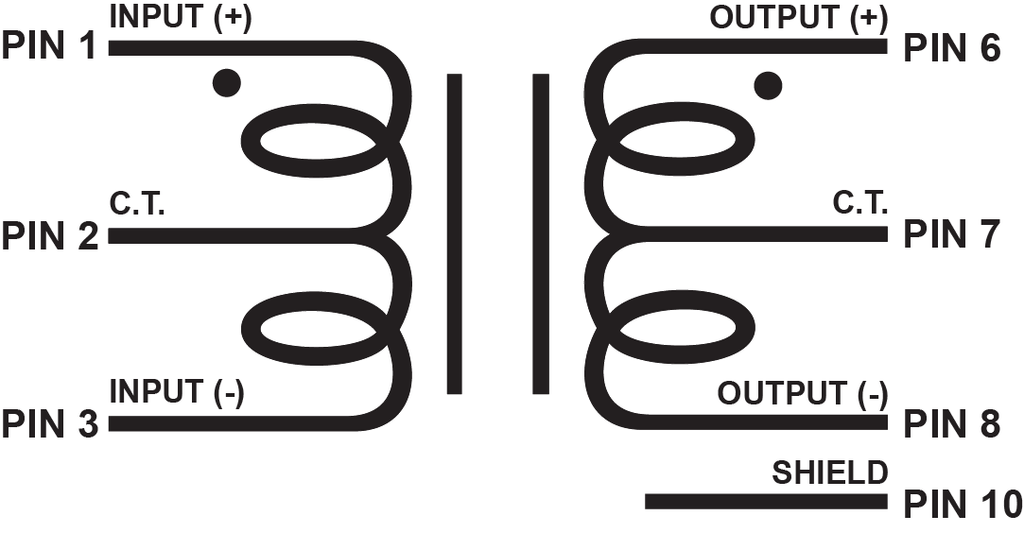

Primary (Input)
Designed for a balanced or unbalanced microphone level signal.
Secondary (Output)
Designed for a balanced or unbalanced line level signal.
Magnet Wire
All units are wound with the finest virgin copper magnet wire. All windings use heavy insulated wire to provide excellent manufacturing yield, lower customer cost and superior life.
The Core
EDCOR uses the finest Super "Q" 80% Nickel cores. Each unit is hand stacked to assure at least 92% stack.
The Bobbin
Injection molded Nylon 6/6 with the addition of 30%-35% glass fibers. The addition of glass fibers allows a higher heat deflection temperature and it brings the material to a class HB UL temperature classification.
Shielding
This unit has an outer copper shielding around winding and core to help eliminate outside interference.
Termination/Mounting
This unit is designed for mounting on a printed circuit board. For footprint and suggested hole and pad size, see dimensional drawing.
Specifications
| Wattage | 0.125W |
| Input Maximum Voltage | 5Vrms |
| Input | Balanced or Unbalanced |
| Output | Balanced or Unbalanced |
| Turns Ratio | Depends on model. |
| Winding Configuration | Interleave Winding |
| Frequency Response | 20~20K Hz., <1dBu |
| THD+Noise | <0.05% @ 1K Hz. |
| Frequency Response/THD+Noise Plot |
MX1cs, MX2cs, MX5cs, MX8cs, MX12cs, MX10K/150cs |
| Insertion Loss | <0.5 dB |
| Bobbin Material | Nylon 6/6 GF-30 |
| Flammability Rating | Class HB |
| Coil Finish Wrapping | Polyester Film Electrical Insulating Tape |
| Core Size |
EI25 (0.25" x 0.25") |
| Core Material | Super "Q" 80% Nickel |
| Shielding | Tin-plated copper EMI shielding tape |
| Secondary Insulation | Clear air dry polyester varnish |
| Termination | 10 pin PCB |
| Mounting |
Printed circuit board (PCB) |
| Mounting Orientation | Laydown |
| Weight | 0.08 lbs. |
| Compliance | RoHS & REACH |
| Dimensional Drawing | 15000-EI025-025-P10 |
| 3D Model (STEP) | 15000-EI025-025-P10 |
