XPWR233 - 720V@300mA CT w/55V bias, 6.3V@5A CT, & 5V@4A
Primary Voltage:
Primary Voltage
Quantity:
| Quantity Discounts | ||||
|---|---|---|---|---|
| 10 pcs | 25 pcs | 100 pcs | 500+ pcs | |
| 5% off | 10% off | 15% off | 20% off | |
| Orders over 25 pcs may take longer. Please contact us for scheduling and dates. | ||||
Get shipping cost estimate in cart.
Vacuum Tube Power transformer: 100V, 50Hz. or 120V, 60Hz.to 720V@300mA CT with a 55V bias tap, 6.3V@5A CT, & 5V@4A.
| Basic Specifications | |
|---|---|
Series |
|
SKU Model Number/Unit Name
|
XPWR233-100
|

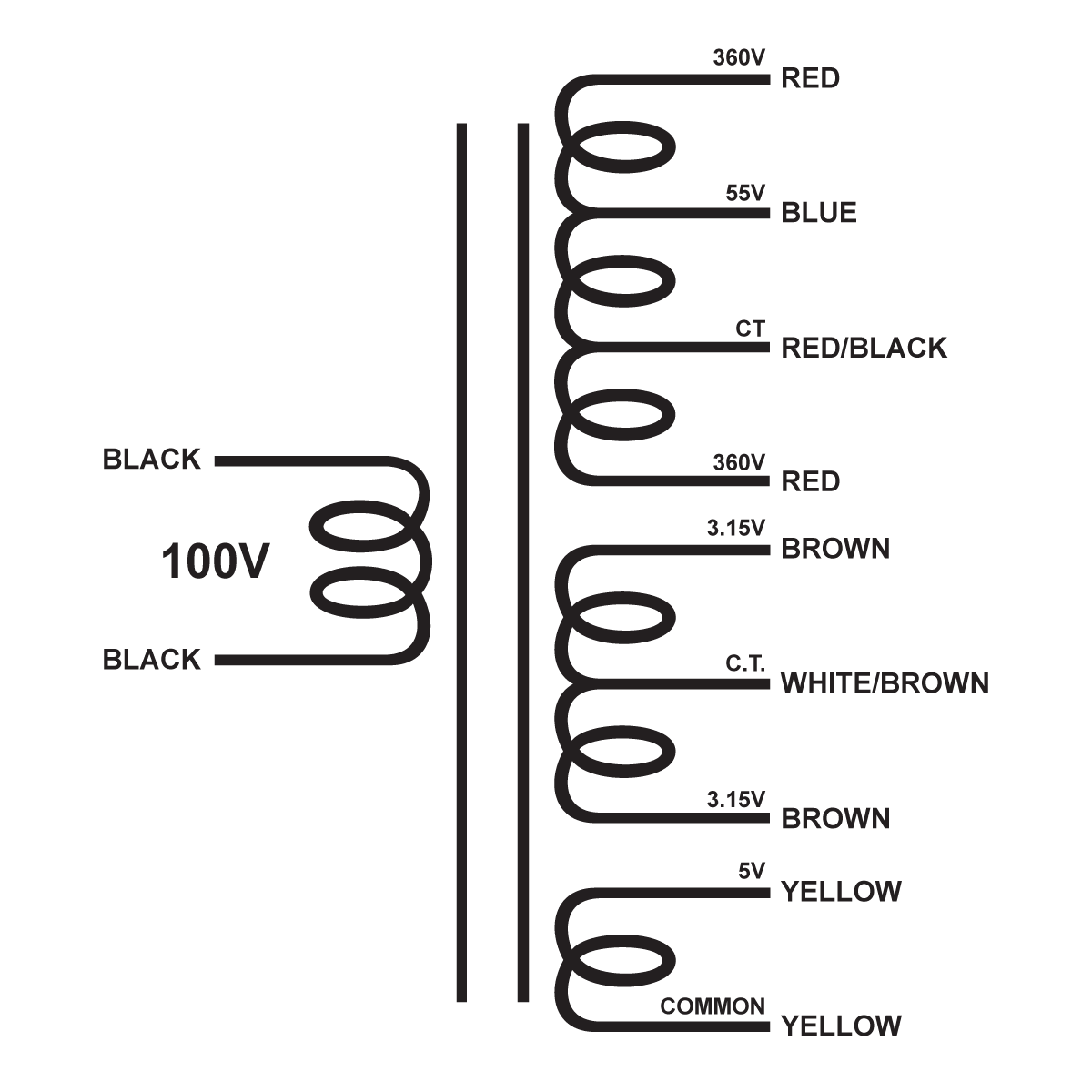

 SchematicFree Adobe Acrobat Reader can be downloaded at Adobe.com.
|
|
 Spec SheetFree Adobe Acrobat Reader can be downloaded at Adobe.com.
|
|
Primary Input
|
|
Secondary Output
|
|
Termination Such as lead wires, terminals, PCB pins, etc.
|
|
Mounting |
|
Mounting Orientation Direction of mounting.
|
|
Mounting Hardware Coating |
|
| Primary (p) | |
Voltage Symbol: Ep
|
100V
|
Impedance Symbol: Zp
AC resistance
|
0.238H
|
Operational Frequency Symbol: ƒop
|
|
Current Symbol: Ip
Maximum primary current
|
2.809A
|
DC Resistance Symbol: Rp
|
0.784Ω
|
Inductance Symbol: Lp
|
0.238H
|
| Secondary | |
Tube Voltage Symbol: Es
|
720V
|
Other Voltage(s) Symbol: Es
|
6.3V and 5V
|
Bias Voltage Symbol: Es
Voltage tapped off of the tube voltage.
|
55V
|
Unloaded Voltage(s) Symbol: NL(Es)
Calculated voltage when no loaded is applied to the secondary.
|
755.801V, 6.63V, and 4.972V
|
Current(s) Symbol: Is
Maximum secondary current(s)
|
0.3A, 5A, and 4A
|
DC Resistance Symbol: Rs
DC Resistance
|
57.272Ω, 0.035Ω, and 0.027Ω
|
Inductance (Ls) Calculated value. Actual value may vary.
|
0.238H
|
| Other Specifications | |
Total Volt Amperes Symbol: VA
|
|
Winding Configuration Type of winding pattern.
|
|
Leakage Inductance Symbol: LI
Imperfect magnetic link of one winding to another.
|
|
Temperature Rise Symbol: Tr
The temperature rise above the ambient temperature at rated power.
|
83.46°F (28.59°C)
|
Efficiency Symbol: η
The efficiency of the transfer of energy from the primary to the secondary.
|
|
| Physical | |
Weight Symbol: Wt
|
9.75 lb
|
Dimensions (Width) X (Height) X (Depth)
|
|
Dimensional Drawing (#) |
|
Dimension Drawing (PDF) Free Adobe Acrobat Reader can be downloaded at Adobe.com.
|
|
3D Model (STEP) STEP (Standard for the Exchange of Product Data), an ISO standard exchange format.
|
|
| Material | |
Bobbin Material |
|
Bobbin Flammability Rating |
|
Magnet Wire |
|
Coil Finish Wrapper |
|
Termination |
|
Core Material |
|
Core Material Size |
|
Core Stack Size |
|
Core Stack Type |
|
Secondary Insulation |
|
Dielectric Strength |
|
Temperature Range |
|
HIPOT Primary-Secondary |
|
| Compliance | |
RoHS Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment.
|
|
REACH Registration, Evaluation, Authorization and Restriction of Chemicals in EU.
|
|
CMRT RMI Conflict Metals Reporting Template
|
|
Please note that some specification values are calculation and may vary from the actual values
⚠ WARNING ⚠
These electronic components are designed exclusively for indoor or enclosed environments. It is crucial to keep them away from water and moisture to prevent damage. Transformers can generate hazardous voltages and currents, so technical electrical expertise is essential for safe use.
