Specially designed to to couple a stereo line level signal to a mono signal.

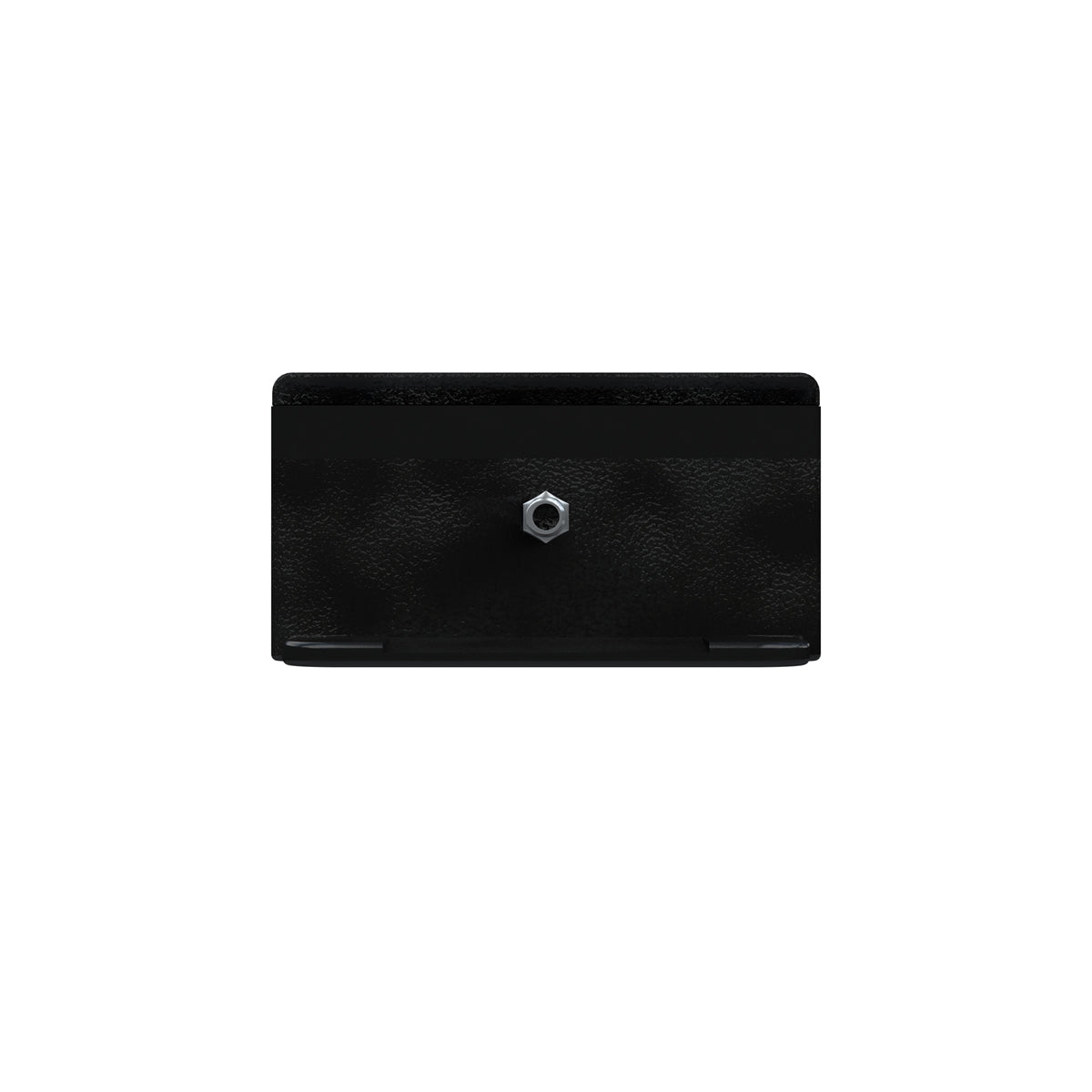

This is a stereo unbalanced 10K Ohms auxiliary line input. The connector is an unbalanced standard stereo (TRRS) 3.5mm (1/8") jacks. This input is ideal for stereo CD players, tape decks, tuners or other stereo unbalanced auxiliary level inputs.
This is a balanced or unbalanced 600 Ohms line level. The connector is a 3 pin screw Eurostyle connector for the balanced output and a mono (TRS) 3.5mm (1/8") jack for the unbalanced output. This line level is output is ideal for telephone lines. signal processors, amplifiers, or any other units that have a balanced or unbalanced line input.
All units are wound with the finest virgin copper magnet wire. All windings use heavy insulated wire to provide excellent manufacturing yield, lower customer cost and superior life.
EDCOR uses the finest M6 line grain oriented steel cores. Each unit is hand stacked to assure at least 92% stack.
Injection molded Nylon 6/6 with the addition of 30%-35% glass fibers. The addition of glass fibers allows a higher heat deflection temperature and it brings the material to a class HB UL temperature classification.

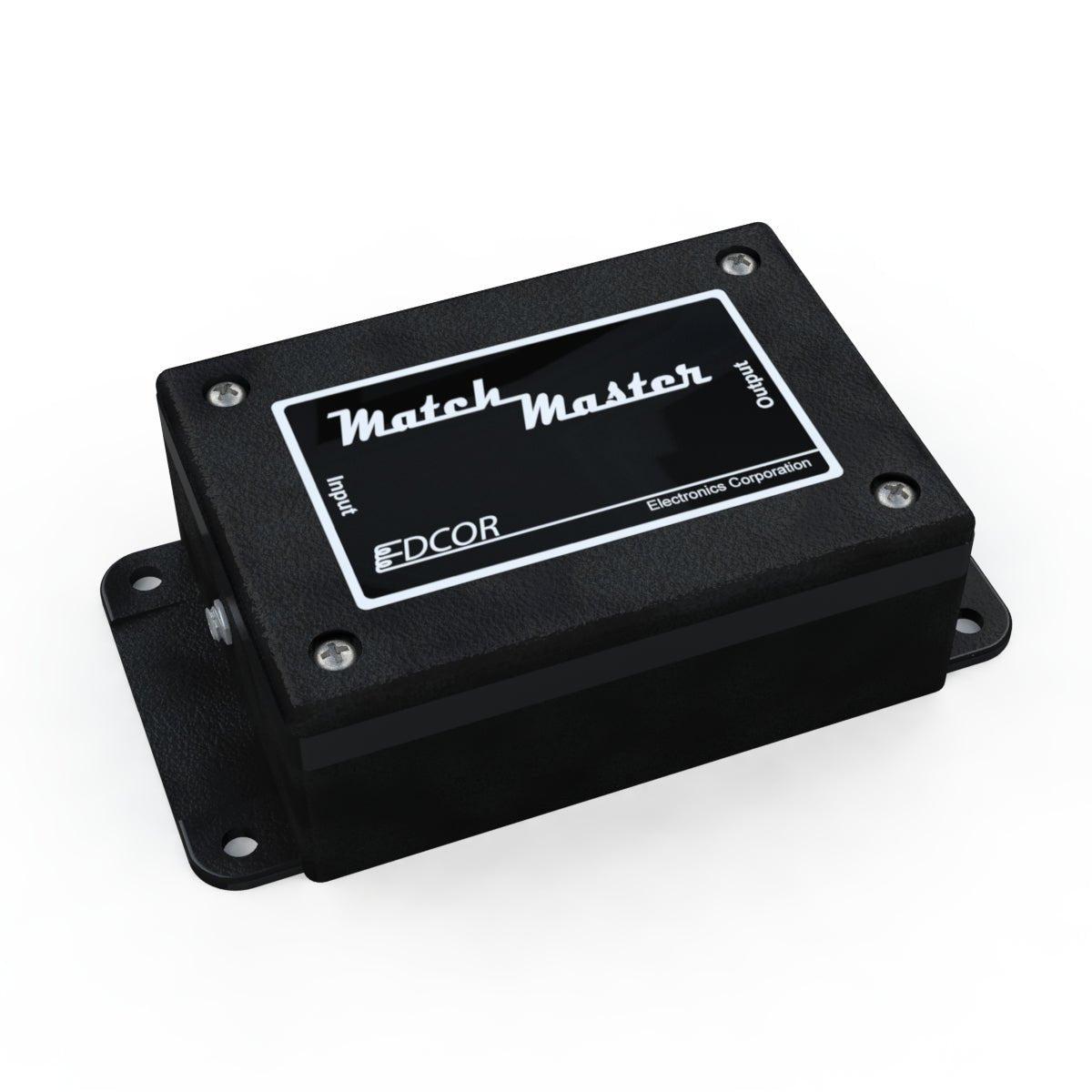

The enclosure is a rugged black ABS plastic molded box for a clean look.

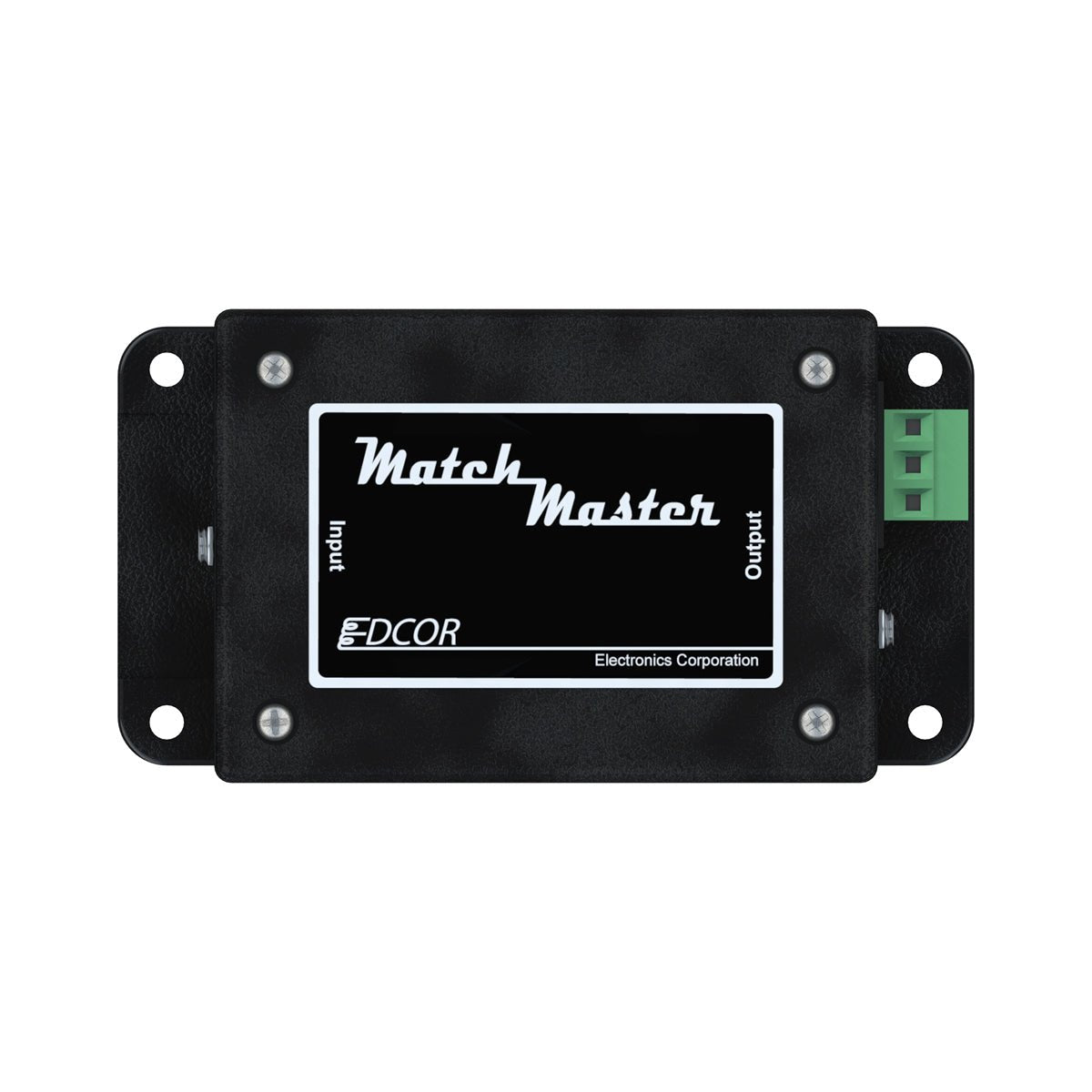

The unit is designed for surface mounting with the use of four screws or with double back tape (not provided). See dimensional drawing.
|Input Maximum Voltage||5Vrms|
|Input||Unbalanced Stereo (TRRS) 3.5mm (1/8") Auxiliary Level Jack|
|Primary (input) Impedance||
Eurostyle Connectors for the Balanced Output.
Phone (RCA type) Jack for the Unbalanced output.
|Secondary (output) Impedance||600 Ω (Balanced)
10K Ω (Unbalanced)
|Winding Configuration||Interleave Winding|
|Frequency Response||20~20K Hz., <1dBu|
|THD+Noise||<0.05% @ 1K Hz.|
|Frequency Response/THD+Noise Plot||
|Insertion Loss||<0.5 dB|
|Enclosure||ABS Plastic Molded Box|
|Compliance||RoHS & REACH|
