Power Transformers - EDCOR Electronics Corporation

Power Transformers

Power transformers for tube amplifier, solid state equipment, design, testing and development.

Filters

Filters
312 products
Sort by
Sort by
EDCOR transformer reference image EDCOR Tube Power Transformer XPWR047 - 660V@120mA CT, 6.3V@2.5A CT, & 5V@3A 120V, 60Hz.
XPWR047 - 660V@120mA CT, 6.3V@2.5A CT, & 5V@3A
£117.00 GBP
EDCOR transformer reference image EDCOR Tube Power Transformer XPWR041 - 680V@120mA CT, 6.3V@4A CT, & 5V@3A
XPWR041 - 680V@120mA CT, 6.3V@4A CT, & 5V@3A
£116.00 GBP
EDCOR transformer reference image EDCOR Tube Power Transformer XPWR038 - 550V@125mA CT, 6.3V@4A, & 5V@4A
XPWR038 - 550V@125mA CT, 6.3V@4A, & 5V@4A
£111.00 GBP
EDCOR transformer reference image EDCOR Tube Power Transformer XPWR017 - 550V@250mA CT, 6.3V@5A, & 5V@3A
XPWR017 - 550V@250mA CT, 6.3V@5A, & 5V@3A
£134.00 GBP
EDCOR EI125 x 1.25" vertical transformer with end bells reference image EDCOR Tube Power Transformer XPWR012 - 350V@100mA CT, 6.3V@2A CT, & 5V@2A 120V, 60Hz
XPWR012 - 350V@100mA CT, 6.3V@2A CT, & 5V@2A
From £108.00 GBP
EDCOR transformer reference image EDCOR Low Voltage Power Transformers EM0990 - 400W, 70.7V to 350V Piezoelectric Speaker Driver.
EM0990 - 400W, 70.7V to 350V Piezoelectric Speaker Driver.
£92.00 GBP
EDCOR EI50 x 0.625 in. channel/frame mounted transformer with leads out top reference image EDCOR Low Voltage Power Transformers EM0989 - 30W, 25V to 600V Piezoelectric Speaker Driver.
EM0989 - 30W, 25V to 600V Piezoelectric Speaker Driver.
£24.00 GBP
EDCOR transformer reference image EDCOR Tube Power Transformer XPWR314 - 360V@300mA, 130V@80mA, 50V@50mA, & 6.3V@6.5A. 240V, 50Hz.
XPWR314 - 360V@300mA, 130V@80mA, 50V@50mA, & 6.3V@6.5A.
From £130.00 GBP
EDCOR transformer reference image EDCOR Tube Power Transformer XPWR309 - 600V (300-0-300)@150mA, 6.3V(3.15-0-3.15)@3A, 5V@3A, & 5V@3A 100V, 50Hz.
XPWR309 - 600V (300-0-300)@150mA, 6.3V(3.15-0-3.15)@3A, 5V@3A, & 5V@3A
From £120.00 GBP
EDCOR transformer reference image EDCOR Tube Power Transformer XPWR307 - 350V@235mA CT, 95V@300mA, & 10V@2A CT
XPWR307 - 350V@235mA CT, 95V@300mA, & 10V@2A CT
£138.00 GBP
EDCOR transformer reference image EDCOR Tube Power Transformer XPWR308 - 550V@175mA CT, 52V@60mA, & 6.3V@4A CT
XPWR308 - 550V@175mA CT, 52V@60mA, & 6.3V@4A CT
£116.00 GBP
EDCOR EI125 x 1.25" vertical transformer with end bells reference image EDCOR Tube Power Transformer XPWR306 - 280V@200mA CT. 30V@10mA, & 6.3V@4A CT
XPWR306 - 280V@200mA CT. 30V@10mA, & 6.3V@4A CT
£101.00 GBP
EDCOR transformer reference image EDCOR Tube Power Transformer XPWR302 - 300V@80mA & 15.75V@1.5A
XPWR302 - 300V@80mA & 15.75V@1.5A
£75.00 GBP
EDCOR transformer reference image EDCOR Tube Power Transformer XPWR294 - 400V@300mA, 230V@100mA, 12V@120mA, 6.3V@3A, 6.3V@2A, & 6.3V@2A
XPWR294 - 400V@300mA, 230V@100mA, 12V@120mA, 6.3V@3A, 6.3V@2A, & 6.3V@2A
£144.00 GBP
EDCOR transformer reference image EDCOR Tube Power Transformer XPWR284 - 600V@250mA CT, 6.3V@4.8A CT, & 5V@3A. 120Vrms, 60Hz.
XPWR284 - 600V@250mA CT, 6.3V@4.8A CT, & 5V@3A.
From £139.00 GBP

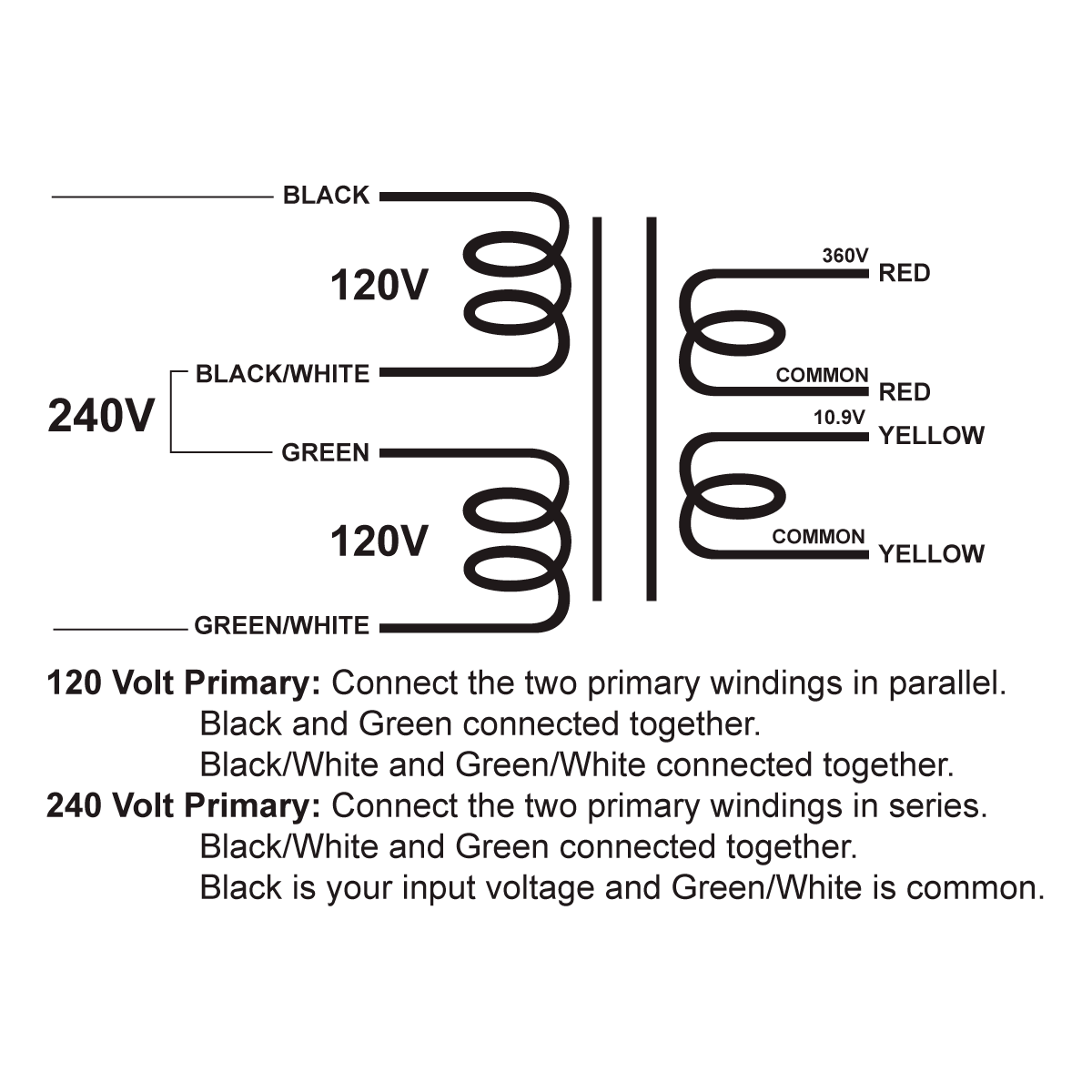

EDCOR transformer reference image EDCOR Tube Power Transformer XPWR267-120/240 - 360V@450mA & 10.9V@4A - 120V/240V, 50/60Hz. Schematic
XPWR267 - 360V@450mA & 10.9V@4A
£128.00 GBP

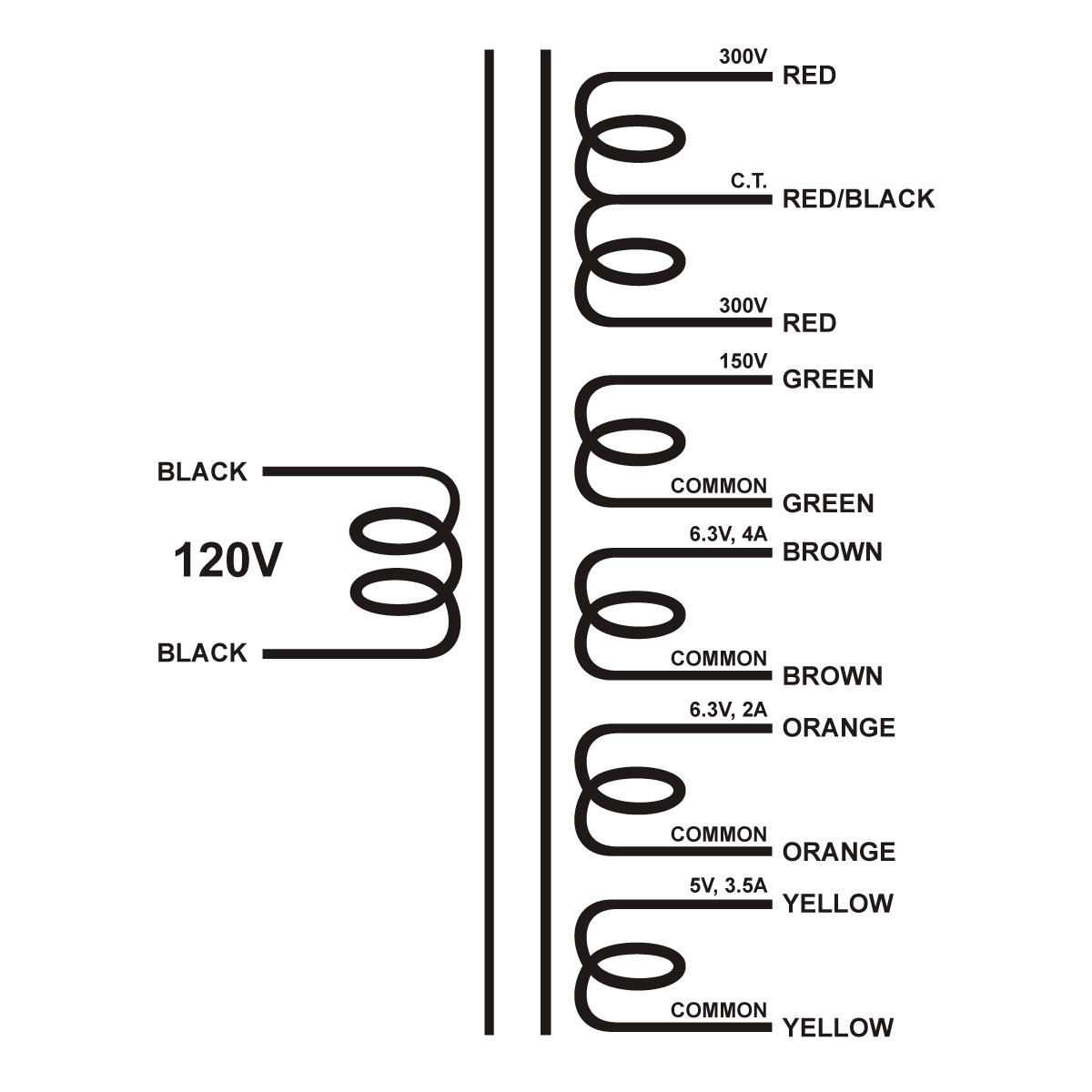

EDCOR transformer reference image EDCOR Tube Power Transformer XPWR251-120 - 600V@400mA CT, 150V@100mA, 6.3V@4A, 6.3V@2A, & 5V@3.5A - 120V, 60Hz. Schematic
XPWR251 - 600V@400mA CT, 150V@100mA, 6.3V@4A, 6.3V@2A, & 5V@3.5A
£160.00 GBP

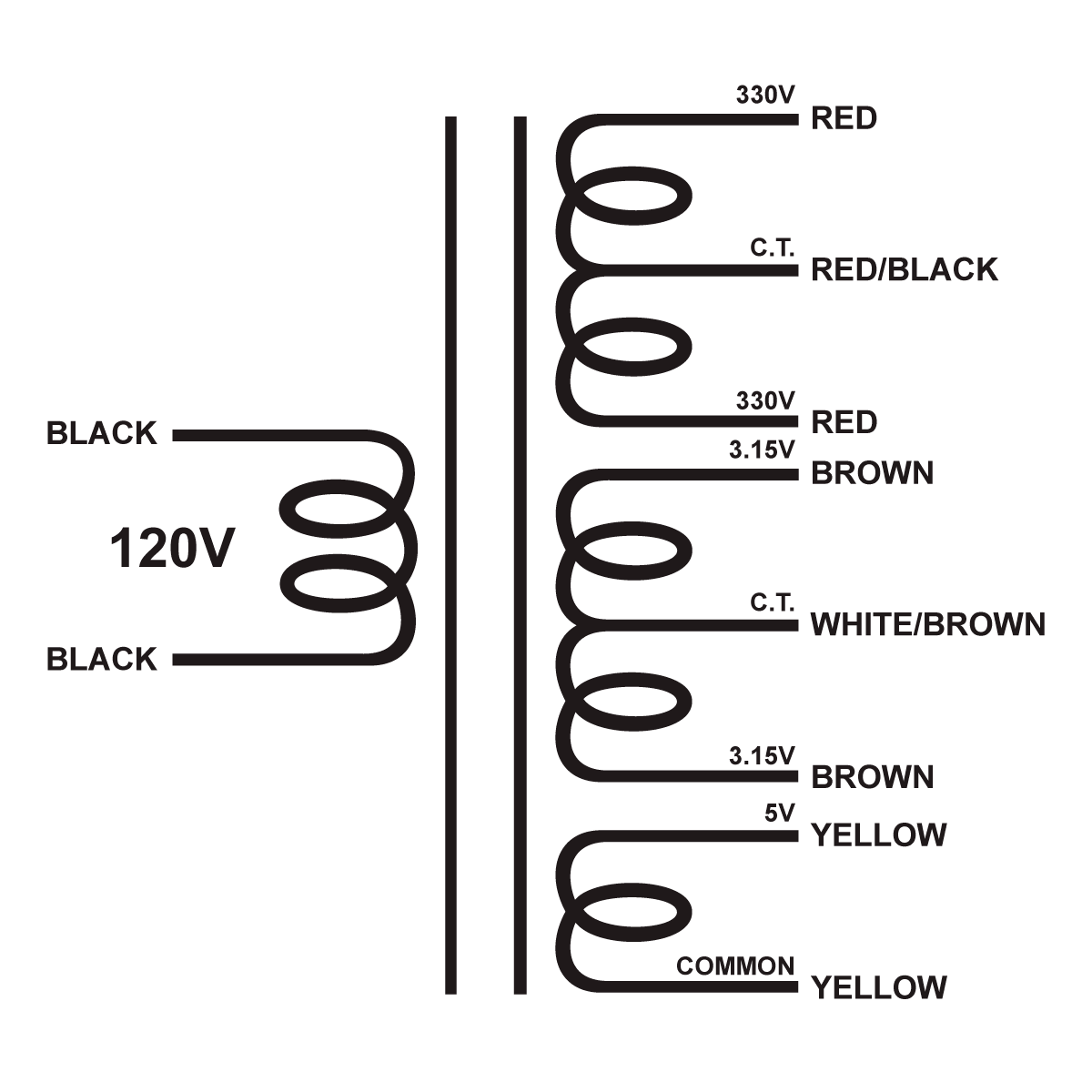

EDCOR transformer reference image EDCOR Tube Power Transformer XPWR245-120 - 660V@125mA CT, 6.3V@4A CT, 5V@3A - 120V, 60Hz. Schematic
XPWR245 - 660V@125mA CT, 6.3V@4A CT, 5V@3A
£116.00 GBP

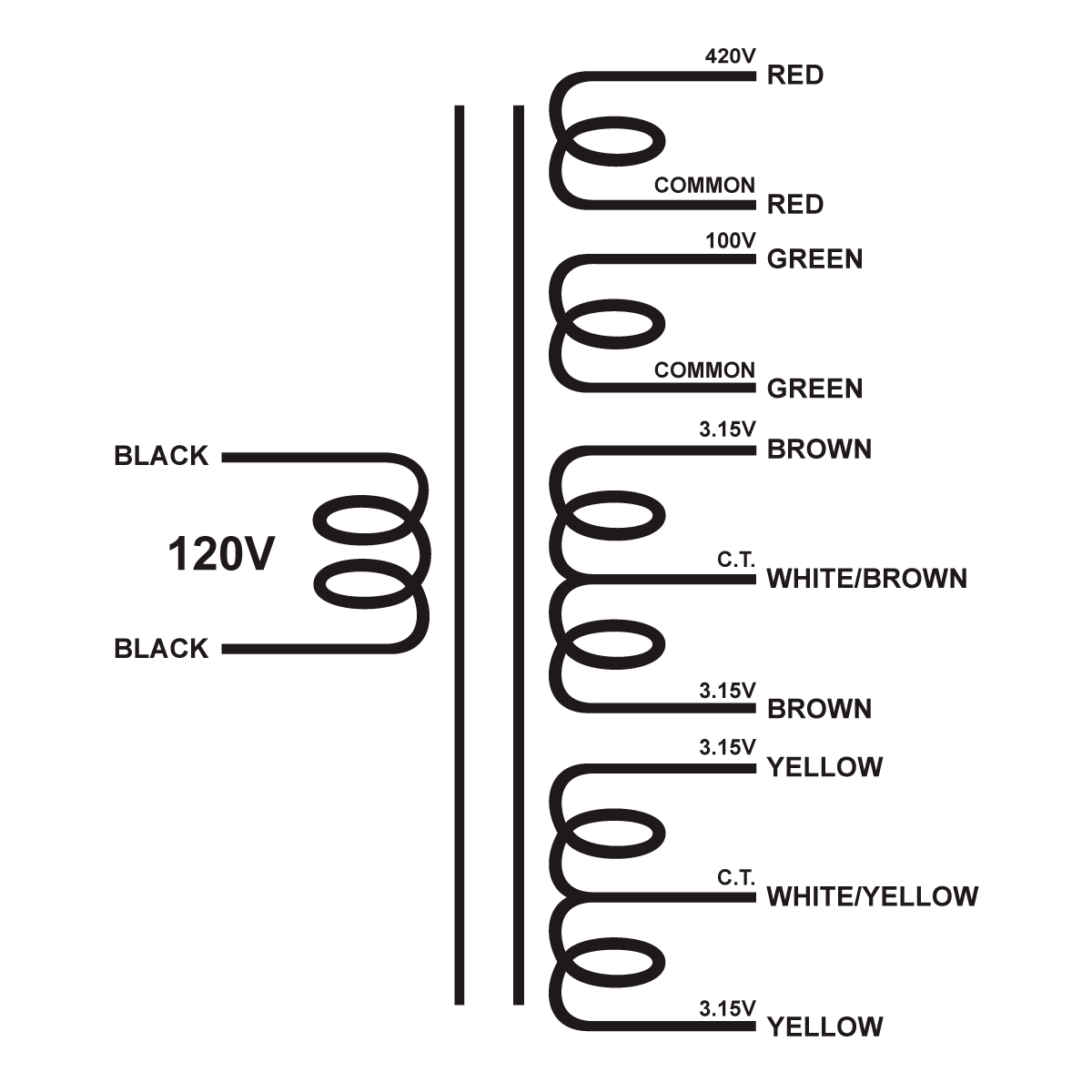

EDCOR transformer reference image EDCOR Tube Power Transformer XPWR239A-120 - 420V@600mA, 100V@50mA, 6.3V@6A CT, & 6.3V@6A CT - 20V, 60Hz. Schematic
XPWR239A - 420V@600mA, 100V@50mA, 6.3V@6A CT, & 6.3V@6A CT
£178.00 GBP
EDCOR transformer reference image EDCOR Tube Power Transformer XPWR231 - 520V@160mA CT, 6.3V@3A & 6.3V@2A 120Vrms, 60Hz.
XPWR231 - 520V@160mA CT, 6.3V@3A & 6.3V@2A
£108.00 GBP

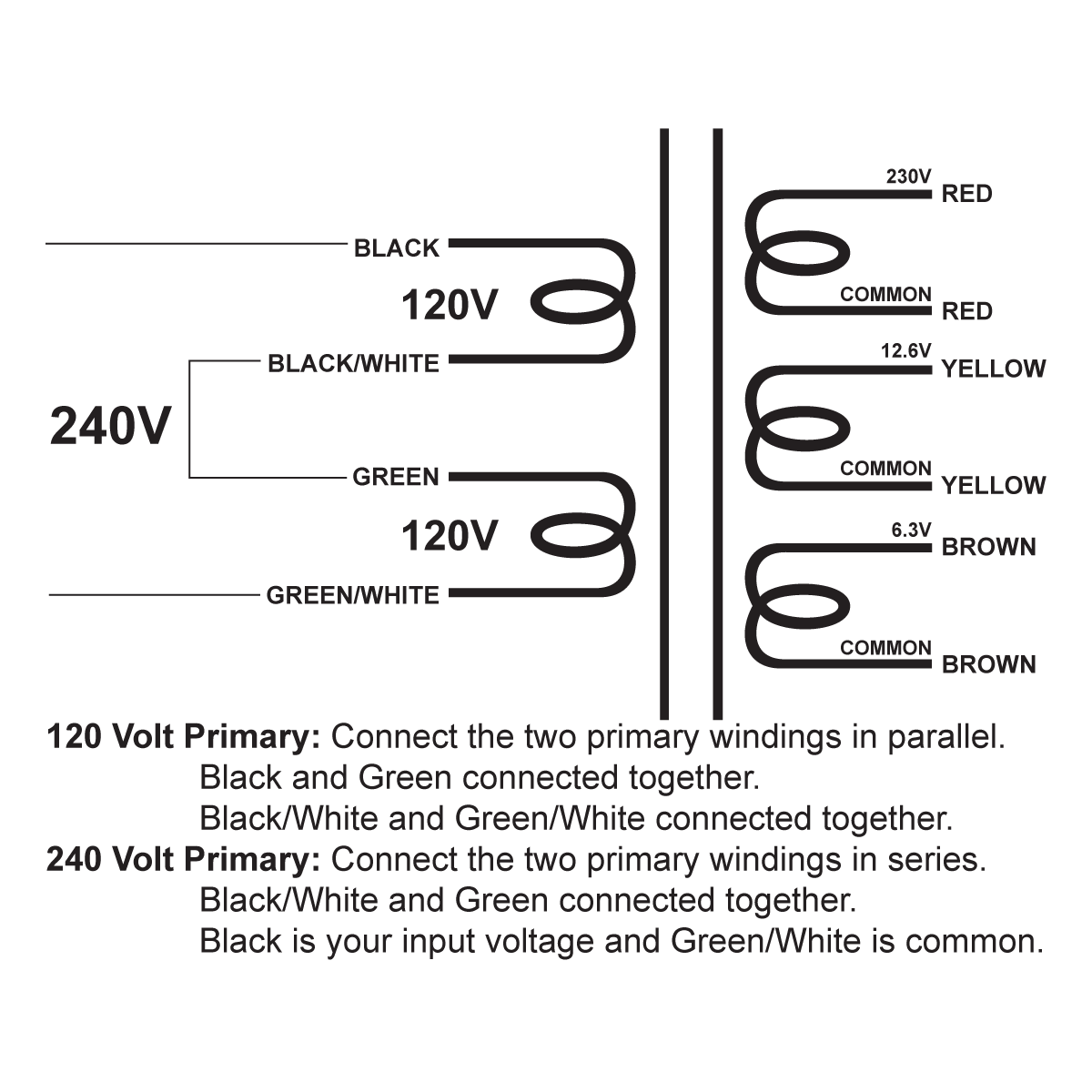

EDCOR EI125 x 1.25" vertical transformer with end bells reference image EDCOR Tube Power Transformer XPWR213-120/240 - 230V@200mA, 12.6V@500mA, & 6.3V@3.5A - 120V/240V, 50/60Hz. Schematic
XPWR213 - 230V@200mA, 12.6V@500mA, & 6.3V@3.5A
£105.00 GBP

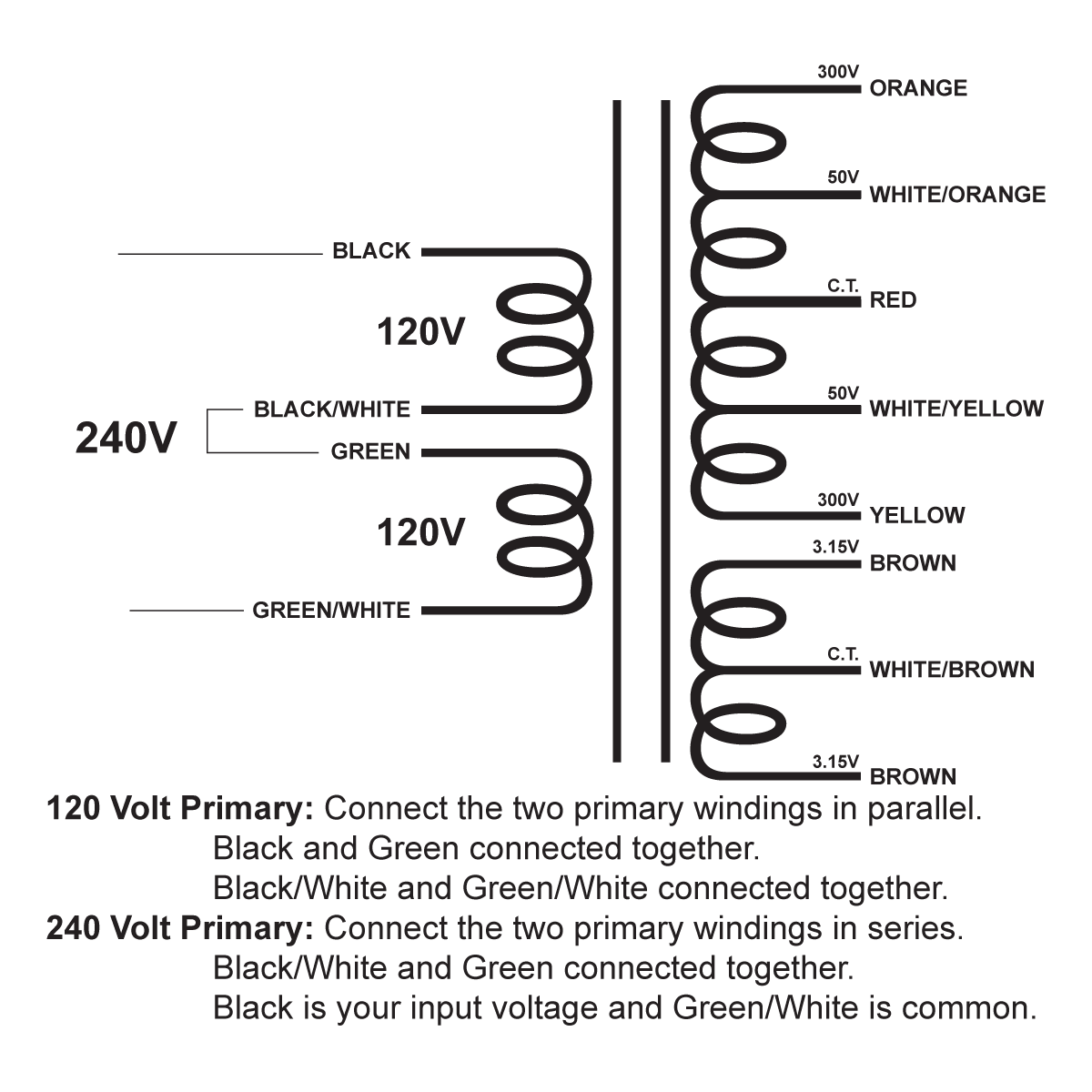

EDCOR transformer reference image EDCOR Tube Power Transformer XPWR205-120/240 - 600V/100V@200mA CT & 6.3V@6A CT - 120V/240V, 50?60Hz. Schematic
XPWR205 - 600V/100V@200mA CT & 6.3V@6A CT
£137.00 GBP
EDCOR transformer reference image EDCOR Tube Power Transformer XPWR197-120 - 650V@120mA CT & 6.3V@4A - 120V, 60Hz. Schematic
XPWR197 - 650V@120mA CT & 6.3V@4A
£104.00 GBP

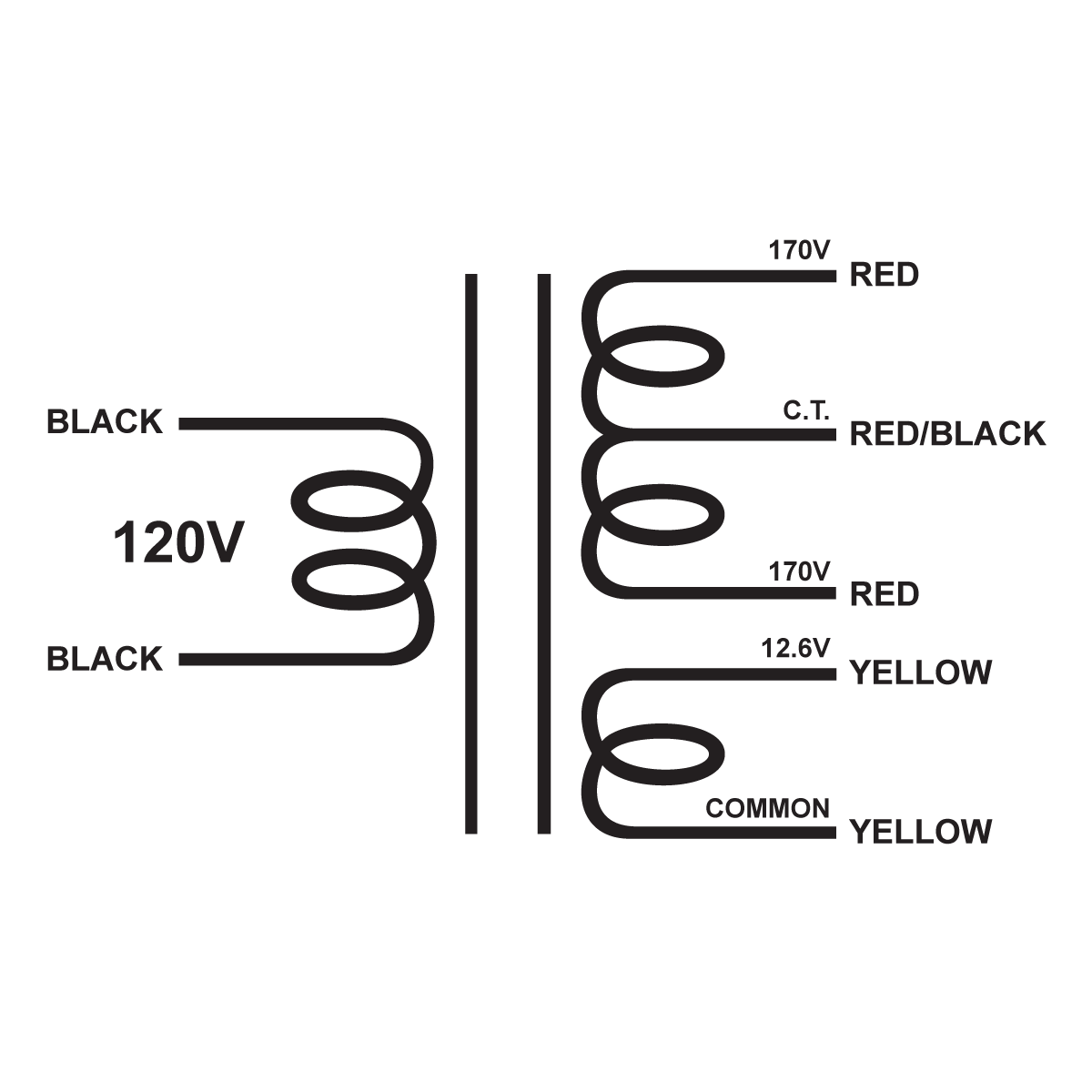

EDCOR transformer reference image EDCOR Tube Power Transformer XPWR188-120 - 340V@500mA CT & 12.6V@3A - 120V, 60Hz. Schematic
XPWR188 - 340V@500mA CT & 12.6V@3A
£140.00 GBP
